Outer Lamp
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

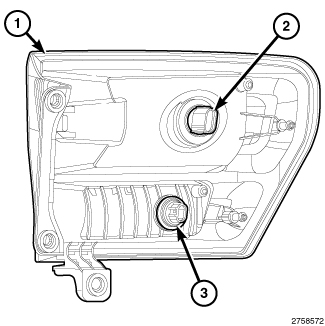

In vehicles manufactured for domestic markets, the outer rear lamp unit (1) contains a bulb (2) for tail/stop/rear side marker/turn signal functions and a second bulb (3) behind a clear lens for an auxiliary backup lamp function. In vehicles manufactured for export markets, the tail/stop/rear side marker functions are performed by one bulb (2) and a separate turn signal bulb (3) behind an amber lens is used in place of the auxiliary backup bulb. The service procedures for each bulb are the same, only the bulb sizes and types may differ.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the outer rear lamp unit (1) from the end of the quarter panel. Refer to LAMP, TAIL STOP TURN, REMOVAL .
- Firmly grasp the appropriate bulb socket (2 or 3) on the back of the rear lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the housing.
- Pull the base of the bulb straight out of the socket.
