Lamp, Fog: Installation: Bulb
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

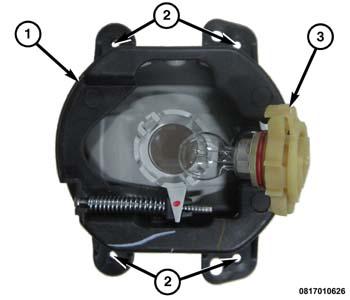

- Secure the replacement bulb into the bulb socket (3).
- Insert the bulb and socket into the back of the fog lamp assembly.
- Connect the wire harness connector to the back of the fog lamp socket.
- Close the access cover in the wheel well area.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
