Switch, D-Pillar: Description

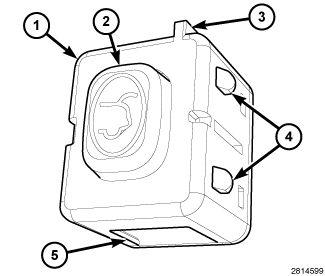

The rear power liftgate switch (1) (also known as the D-pillar switch) is located on the left quarter trim panel, in a mounting hole bezel located between the left rear inner wheel housing and the D-pillar. This switch has a single momentary push button (2) and is used to provide a Close request to the Power LiftGate Module (PLGM).
The switch is constructed of molded plastic and the push button has a smooth, concave face with an International Control and Display Symbol icon for Liftgate Release or Liftgate Open applied to it. The switch housing is secured within the receptacle on the back of the switch mounting bezel by two snap features (4) integral to each side of the switch housing. The top of the switch housing has an integral spline (3) that ensures proper switch orientation when it engages a keyway integral to the switch bezel receptacle.
The bottom of the switch housing has an integral connector receptacle (5) containing terminal pins that connect the switch to the vehicle electrical system through a dedicated take out and connector of the body wire harness.
The rear power liftgate switch cannot be repaired and, if ineffective or damaged, it must be replaced.
