Section 15 (Power Liftgate (Service Information)): Chime: Description
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

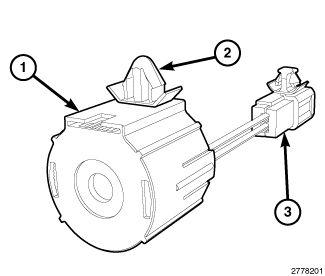

Vehicles equipped with an optional power operated liftgate have a power liftgate chime (1). The chime is concealed behind the left quarter inner trim panel. The chime is contained within a small cylindrically-shaped molded plastic housing that is secured to the left inner D-pillar sheet metal by an integral molded plastic retainer (2).
The chime has a pigtail wire and connector (3) that connects it to the vehicle electrical system through a dedicated take out and connector of the body wire harness.
The chime cannot be adjusted or repaired and, if damaged or ineffective, the entire chime unit must be replaced.
