B1291-11-PTS Sensor 4-Circuit Short To Ground: Notes

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

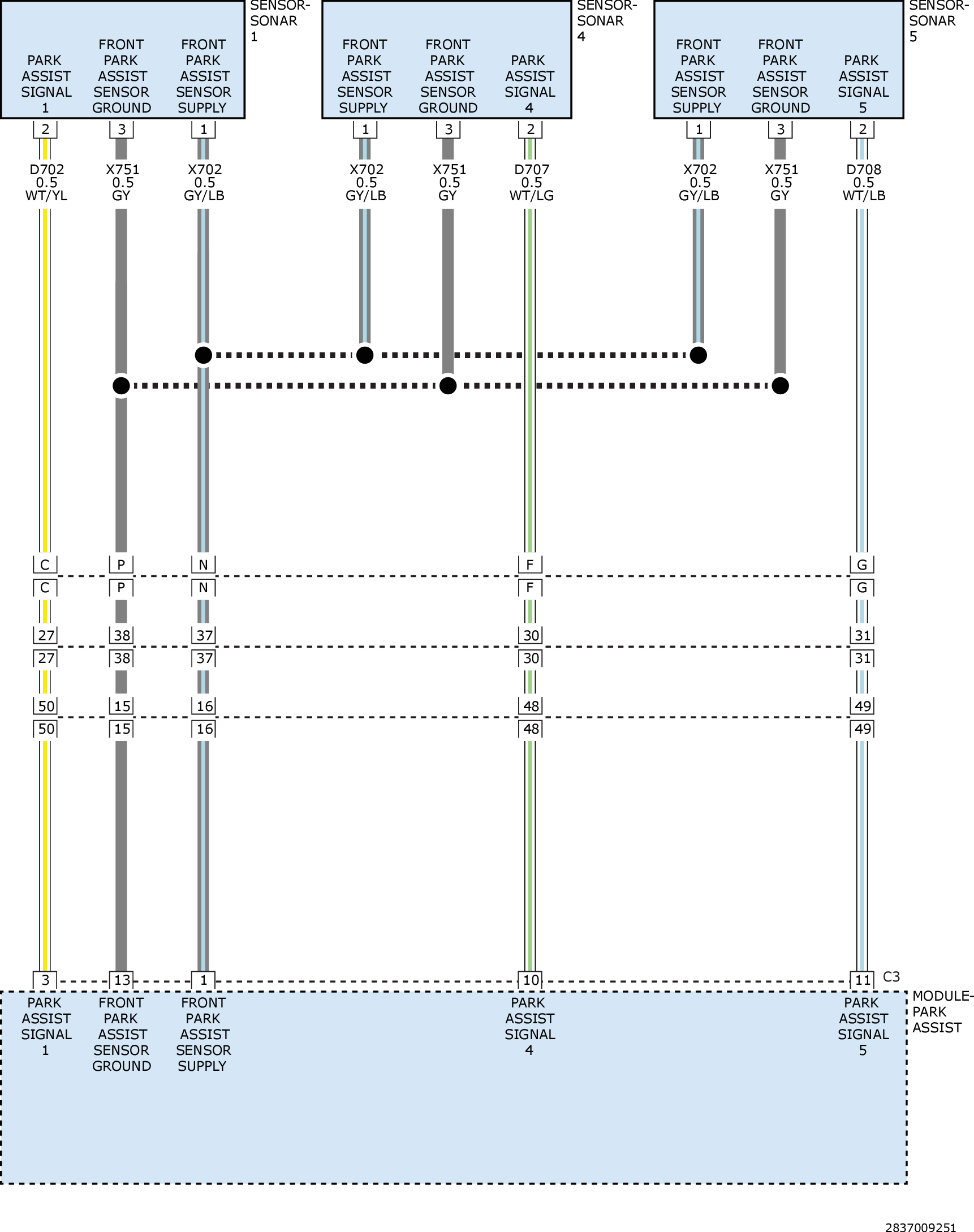

GC0161381Courtesy of CHRYSLER GROUP, LLC
