Seat, Rear: Description

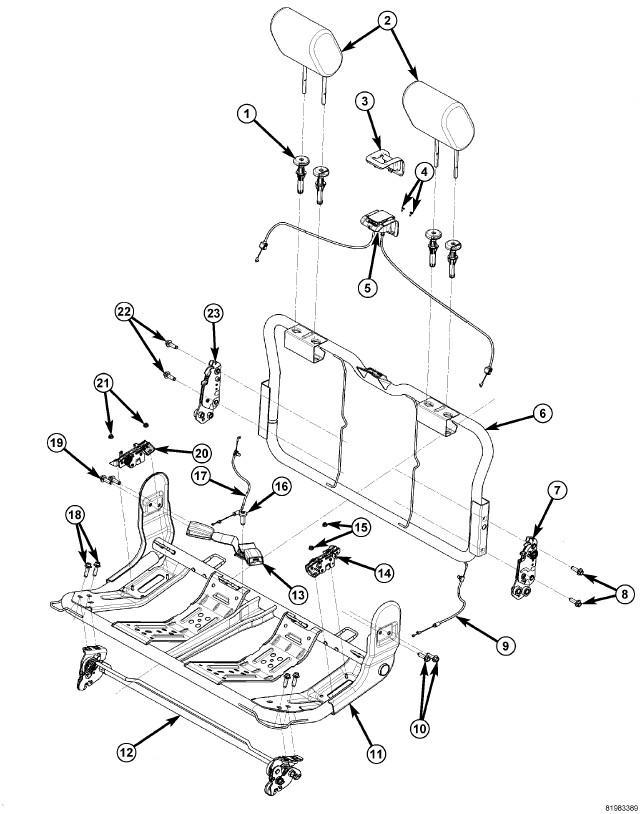

GC0131498Courtesy of CHRYSLER GROUP, LLC
1 - HEADREST SLEEVES 13 - CENTER BELT BUCKLES
2 - HEADRESTS 14 - REAR LATCH - LEFT HAND
3 - RELEASE HANDLE BEZEL 15 - REAR LATCH NUTS 10 N.m (90 in. lbs.)
4 - RELEASE HANDLE SCREWS 16 - CENTER BELT BUCKLE BOLT 55 N.m (40.5 ft. lbs.)
5 - RELEASE HANDLE 17 - CABLE - BACK LATCH TO REAR FLOOR LATCH
6 - SEAT BACK FRAME 18 - FRONT LATCH CUSHION FRAME BOLTS 45 N.m (33 ft. lbs.)
7 - SEAT BACK LATCH 19 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N.m (37 ft. lbs.)
8 - SEAT BACK LATCH BOLTS 45 N.m (33 ft. lbs.) 20 - REAR LATCH - RIGHT HAND
9 - CABLE - BACK LATCH TO REAR FLOOR LATCH 21 - REAR LATCH NUTS 10 N.m (90 in. lbs.)
10 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N.m (37 ft. lbs.) 22 - SEAT BACK LATCH BOLTS 45 N.m (33 ft. lbs.)
11 - SEAT CUSHION FRAME 23 - SEAT BACK LATCH
12 - FRONT LATCH

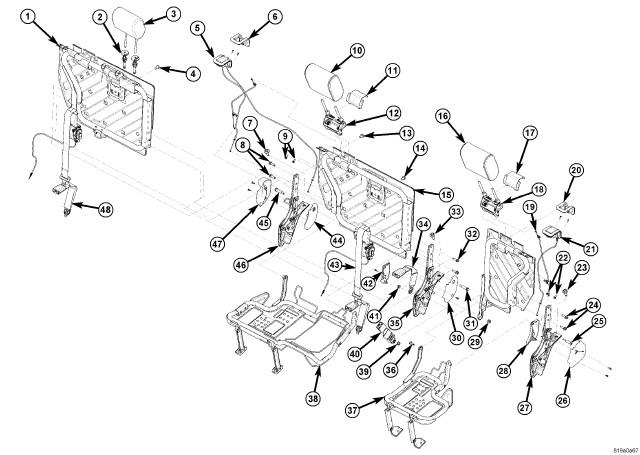

GC0131499Courtesy of CHRYSLER GROUP, LLC
1 - 60% SEAT BACK FRAME - EXPORT 25 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
2 - EXPORT HEADREST SLEEVES 26 - OUTER LATCH COVER
3 - HEADREST - EXPORT 27 - OUTBOARD LATCH
4 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.) 28 - INNER LATCH COVER
5 - RELEASE HANDLE 29 - 40% INNER SEAT BACK PIVOT NUT 25 N.m (18.5 ft. lbs.)
6 - RELEASE HANDLE BEZEL 30 - INNER LATCH COVER
7 - OUTBOARD LATCH FLOOR BOLTS 25 N.m (18.5 ft. lbs.) 31 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
8 - LATCH TO BACK FRAME BOLTS 45 N.m (33 ft. lbs.) 32 - LATCH TO BACK FRAME BOLTS 45 N.m (33 ft. lbs.)
9 - HEADREST BOLTS 8 N.m (71 in. lbs.) 33 - INNER LATCH FLOOR BOLTS 25 N.m (18.5 ft. lbs.)
10 - HEADREST 34 - 60% INBOARD BUCKLE
11 - HEADREST BEZEL 35 - INBOARD LATCH
12 - HEADREST BRACKET AND HINGE 36 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
13 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.) 37 - 40% SEAT CUSHION FRAME
14 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.) 38 - 60% SEAT CUSHION FRAME
15 - 60% SEAT BACK FRAME 39 - BELT BUCKLE NUT 45 N.m (33 ft. lbs.)
16 - HEADREST 40 - 40% INBOARD BUCKLE
17 - HEADREST BEZEL 41 - BELT BUCKLE NUT 45 N.m (33 ft. lbs.)
18 - HEADREST BRACKET AND HINGE 42 - INNER LATCH COVER
19 - HEADREST RELEASE CABLE 43 - SEAT BELT RETRACTOR
20 - RELEASE HANDLE BEZEL 44 - INNER LATCH COVER
21 - RELEASE HANDLE 45 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
22 - HEADREST BOLTS 8 N.m (71 in. lbs.) 46 - OUTBOARD LATCH
23 - OUTBOARD LATCH FLOOR BOLTS 25 N.m (18.5 ft. lbs.) 47 - OUTER LATCH COVER
24 - LATCH TO BACK FRAME BOLTS 45 N.m (33 ft. lbs.) 48 - SEAT BELT RETRACTOR
