Glove Box, Instrument Panel: Removal

GC0131425Courtesy of CHRYSLER GROUP, LLC
  1. Open the glove box (1) and squeeze the stop tabs (2) inward.

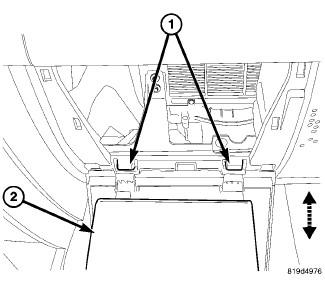

    GC0131426Courtesy of CHRYSLER GROUP, LLC
  2. Lower the glove box (2) and release the hinges (1) and remove the glove box.
