Repair Procedure For Hard Top Seal

Courtesy of CHRYSLER GROUP, LLC

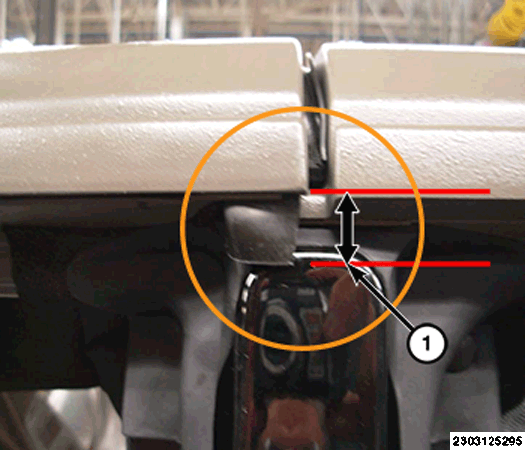

Example of gaps correct gap-

Courtesy of CHRYSLER GROUP, LLC

1. Inspect the hard top seal-
   1. Inspect the end molds (1) for poor installation.

      Courtesy of CHRYSLER GROUP, LLC

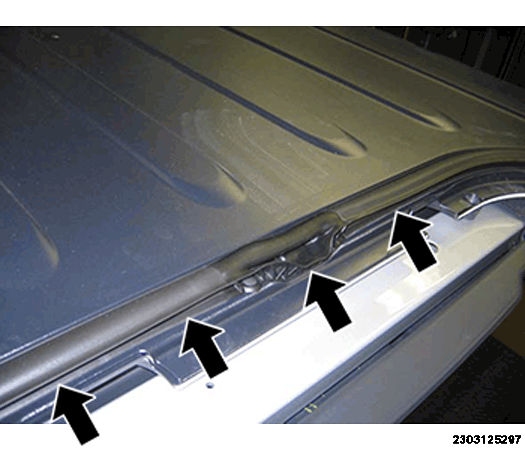

   2. Inspect underneath the seals for any skips with the tape/butyl along the entire seal.

      Courtesy of CHRYSLER GROUP, LLC

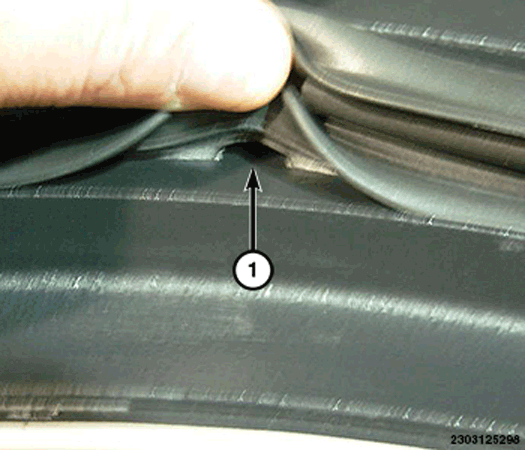

   3. Inspect for any tape skips (1).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   If there are multiple skips or the leak cannot be stopped, replace seal

2. Replace the hard top seal-
   1. Remove all tape/butyl.
      NOTE:

      A rubber wheel bit can be used to remove the tape.

   2. Clean with alcohol prior to replacement seal installation

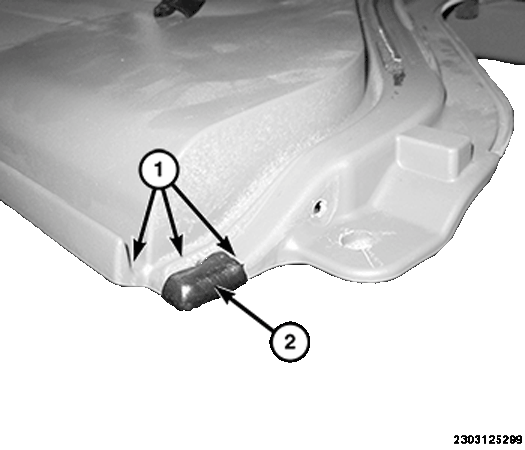

   3. Pre-apply butyl (2) (part # 68027813AA) in area shown on hard top, prior to installing the seal.
      NOTE:

      Do not apply buty in locations (1).

      Courtesy of CHRYSLER GROUP, LLC

      NOTE:

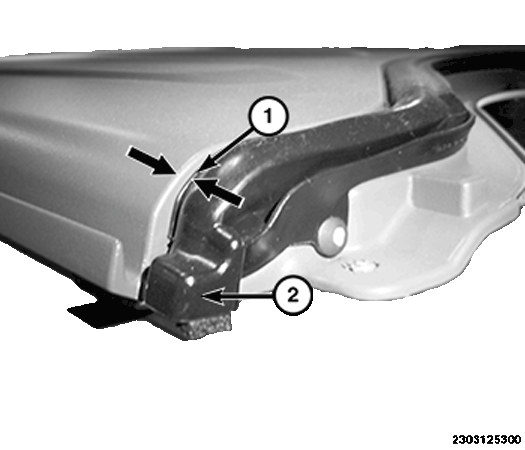

      It is critical that the end molds (2) are installed correctly and sufficient pressure is applied to wet out the butyl/tape.

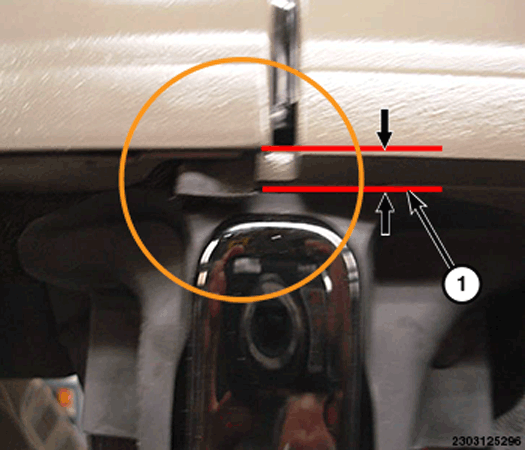

   4. Seal is to be installed 2 mm under flush (1) from the hard top edge to the seal edge, where shown.
   5. Apply sufficient pressure is to wet out the butyl/tape.
