Repair Procedure For Freedom Panels Misaligned

Courtesy of CHRYSLER GROUP, LLC

These repair procedures are applicable when water is evident on the:

NOTE:

This applies to both Left and Right Freedom panels (1).

Inspection:

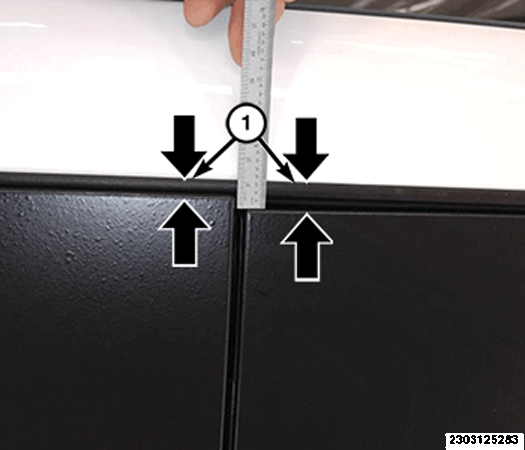

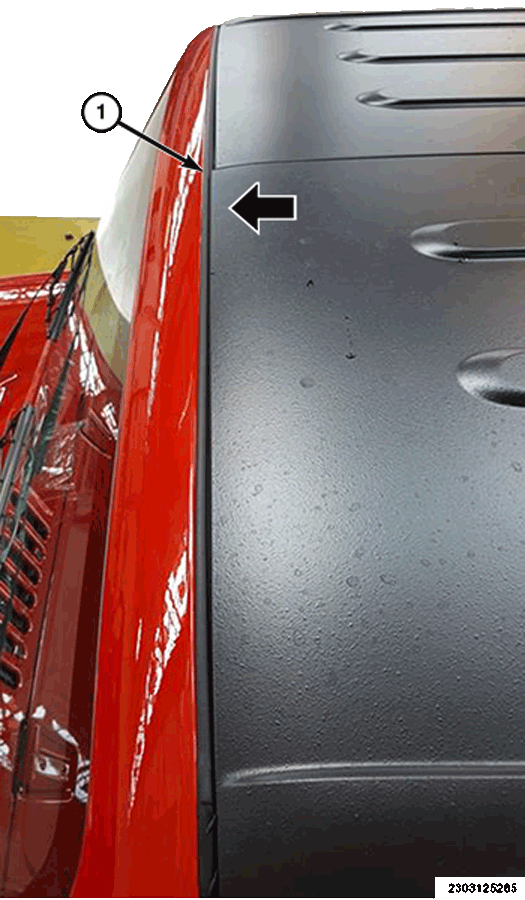

Measure the gap between the edge of the freedom panel and the windshield header sheet metal for the left and right panel.
- Is the gap (1) within 8-10 mm
  1. Yes> Although the panels are misaligned the condition will not generate a water leak, continue further diagnosis.
  2. No> Proceed to the repair procedure.

Courtesy of CHRYSLER GROUP, LLC

Repair Procedure:

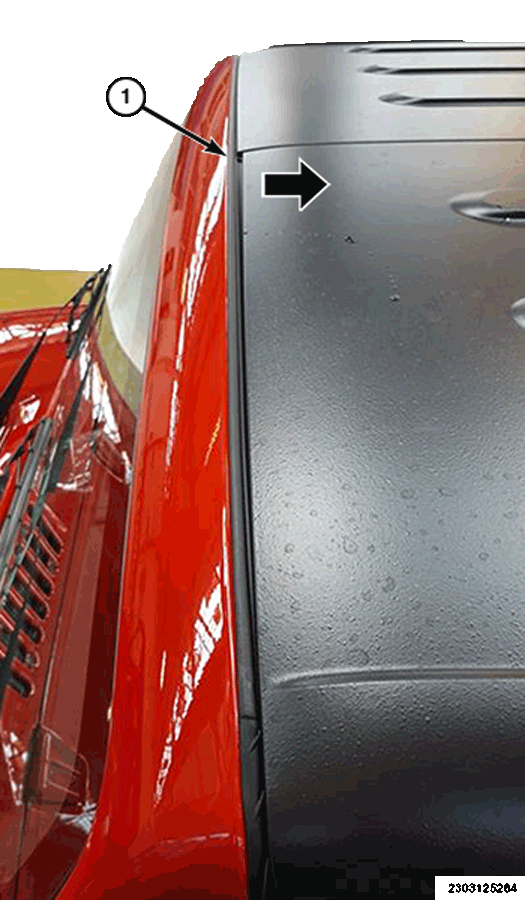

Determine the direction of the stagger-

Panels can either be staggered with the left panel behind the right panel

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

Remove both freedom panels from the vehicle.

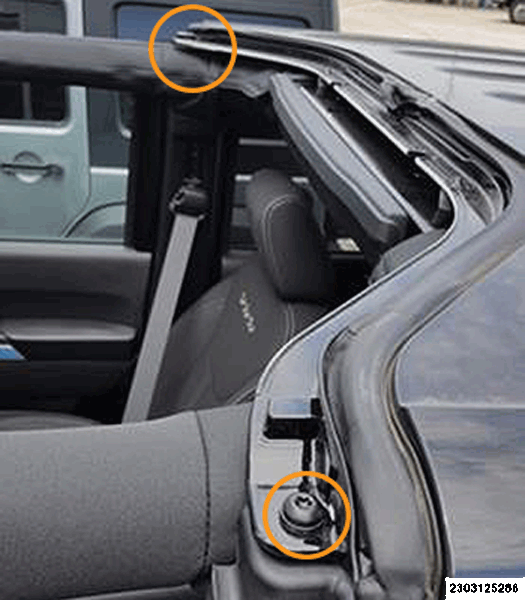

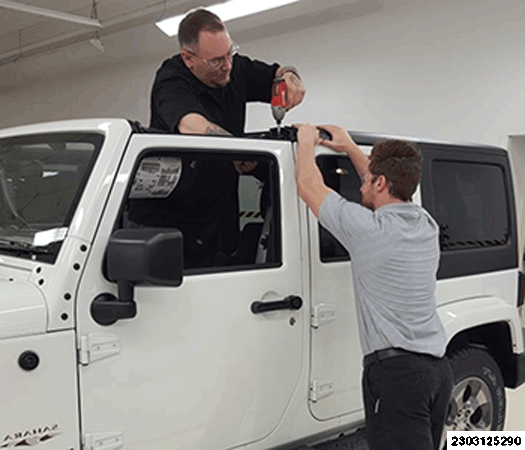

Remove the two freedom top torx fasteners located on the rear panel.

Courtesy of CHRYSLER GROUP, LLC

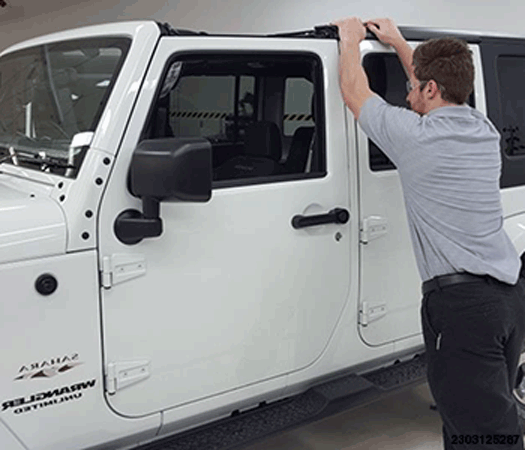

For the left panel behind the right panel condition apply pressure to the hardtop above the left B-pillar towards the right side of the vehicle.

Courtesy of CHRYSLER GROUP, LLC

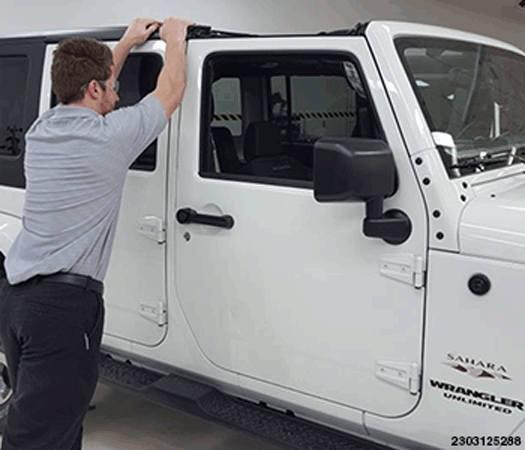

For the right panel behind the left panel condition apply pressure to the hardtop above the right B-pillar towards the left side of the vehicle.

Courtesy of CHRYSLER GROUP, LLC

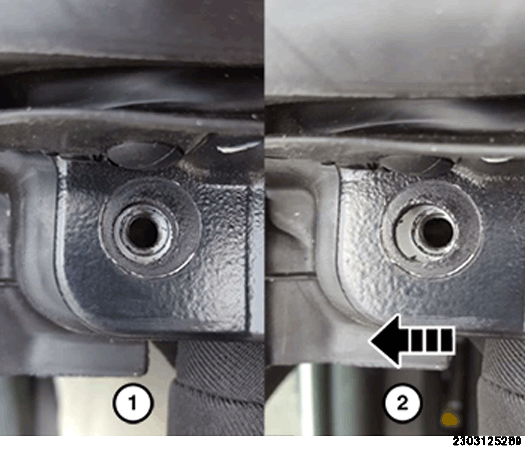

1 = Before

2 = After
Forcing the hardtop to one side will shift the freedom top clearance hole at the B-pillar post.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
An assistant is helpful when performing the following step.
While maintaining pressure against the freedom top panel in the previously determined direction, re-torque the freedom top panel B-pillar bolts

Courtesy of CHRYSLER GROUP, LLC
After completing adjustments, reinstall the freedom top panels

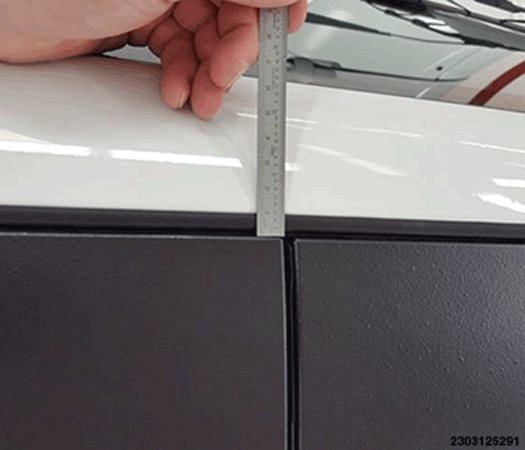

Using the previous measuring device, verify the gap between the freedom panel edge and windshield header is within 8mm-10mm.
If not within the specification repeat the adjustment process.
