Repair Procedure For Cowl Side Panel
This repair procedure is applicable when water is evident on the:
- Front floor (wet carpet)

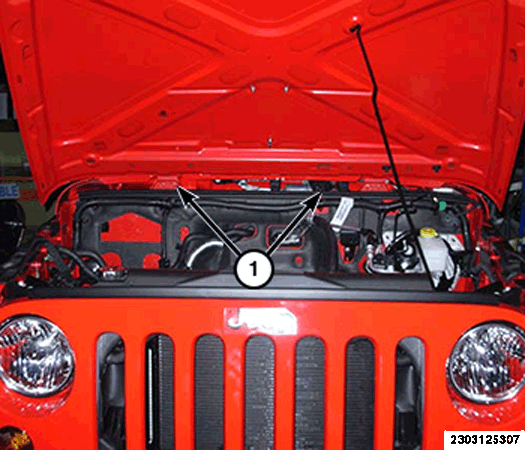

Location of the leak is the Cowl Side Panel (1).
NOTE:
These leaks can be diagnosed by applying a water hose in the cowl panel area (1)

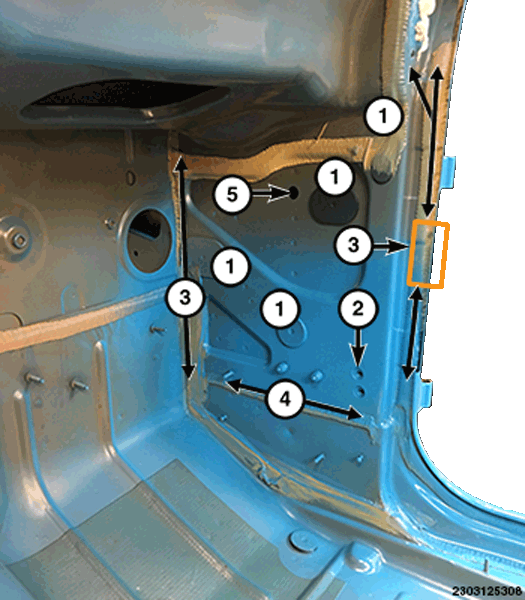

Condition (1): Mastic Patches / Plugs
- Replace patch or plug.
Condition (2): Check strap bracket
- Remove bracket and apply butyl to holes.
Condition (3): Seam sealer skips
- Apply Kent High Tech clear seam sealer P10200 to skip.
Condition (4): Scuff trim foam damaged / missing
- Replace trim clips.
Condition (5): Antenna grommet not seated
- Re-install grommet.
