Repair Procedure For B-Pillar MUCKET And Foam

Courtesy of CHRYSLER GROUP, LLC

This repair procedure is applicable when water is evident on the:

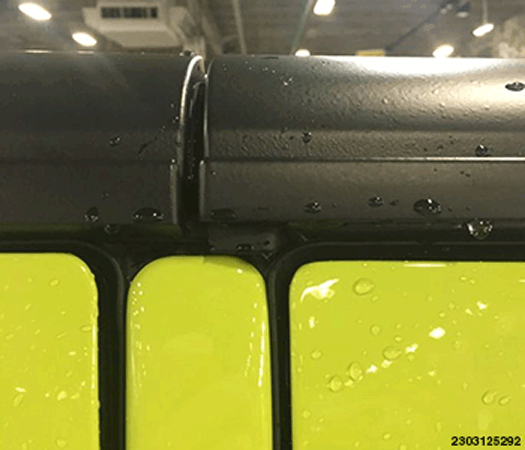

• B-pillar trim or seat

NOTE:

This repair applies to 4 door hard top or soft top models

Courtesy of CHRYSLER GROUP, LLC

1. Inspect the mucket-

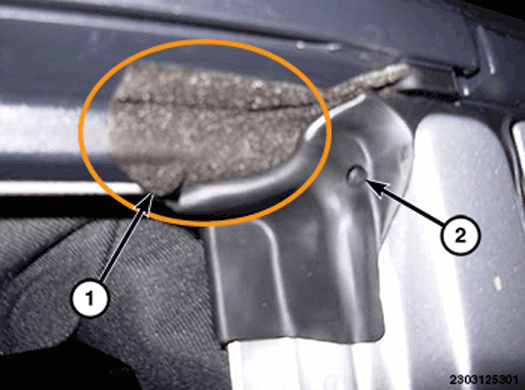

   1. Inspect the mucket for a rolled under condition (1).
   2. Inspect the mucket for a missing drain hole (2).

   Courtesy of CHRYSLER GROUP, LLC

2. Replace the mucket-
   1. If either of these conditions exist, replace the mucket (part #55395708/9AE).

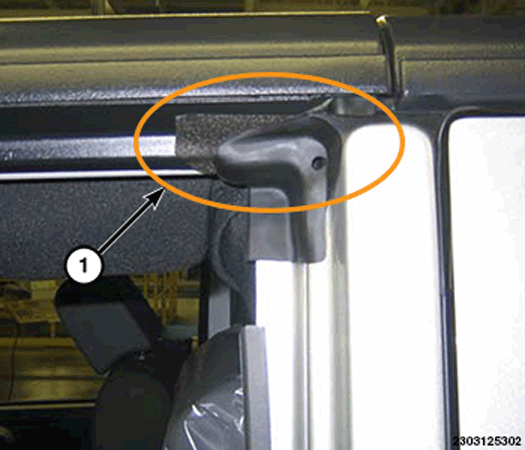

   2. Reinstall the panel or side rail making sure not to distort the mucket (1).

   The mucket (1) is installed correctly

   Courtesy of CHRYSLER GROUP, LLC

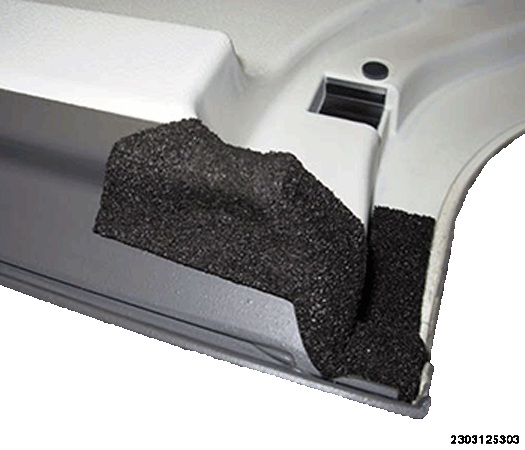

3. Inspect Freedom Panel for damaged or missing foam;
   1. If the foam is damaged, replace the foam using the foam kit (part #68026937AB).
   2. If the foam is missing, replace the foam using the foam kit (part #68026937AB).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   The foam (1) is in addition to the foam that is already on the panel.

4. Add additional foam to the freedom panel-

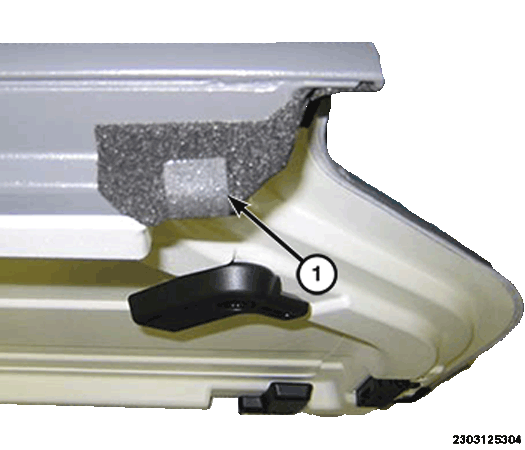

   1. Add a piece of foam (1) to the freedom panel as shown.
   2. This foam can be created by cutting the 30 x 75mm GREY foam in half, from the foam kit (part #68026937AB).
