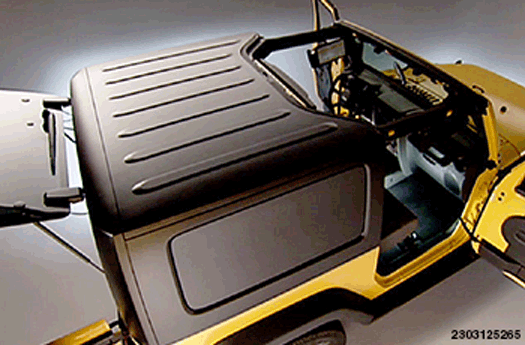

Freedom Panel Installation Process

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Install the right side panel first.

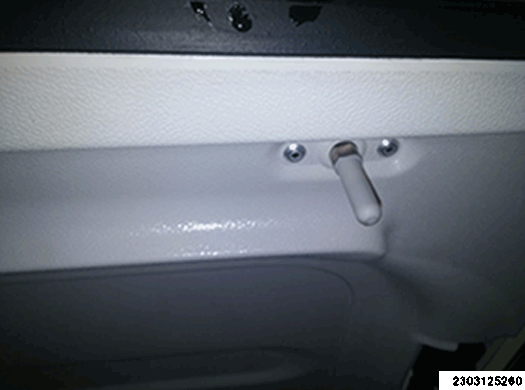

Using the locating pin on the freedom panel, install the panel.

Courtesy of CHRYSLER GROUP, LLC

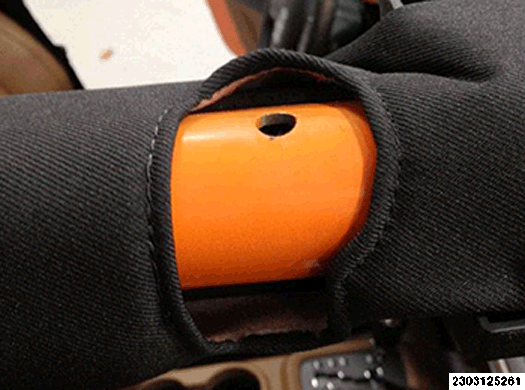

Be certain the locating pin is properly positioned in the hole on the side bar.

Courtesy of CHRYSLER GROUP, LLC

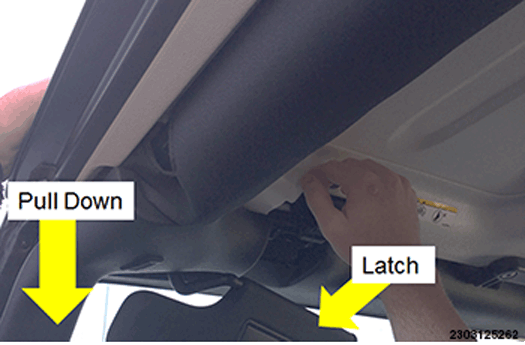

Pulling down on the freedom panel, close the header latch (found at the top of the windshield).

Courtesy of CHRYSLER GROUP, LLC

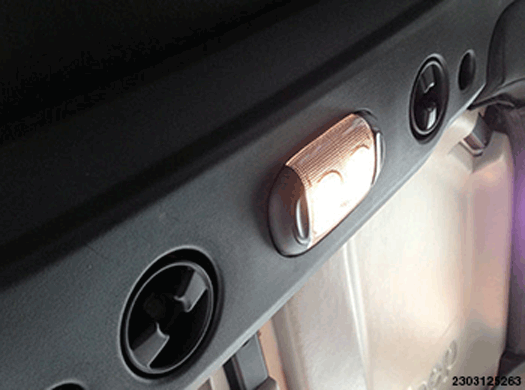

Maintaining firm pull-down pressure on the freedom panel, place and turn the rear fastener knob (found on the overhead speaker bar assembly) clockwise until secure.

Courtesy of CHRYSLER GROUP, LLC

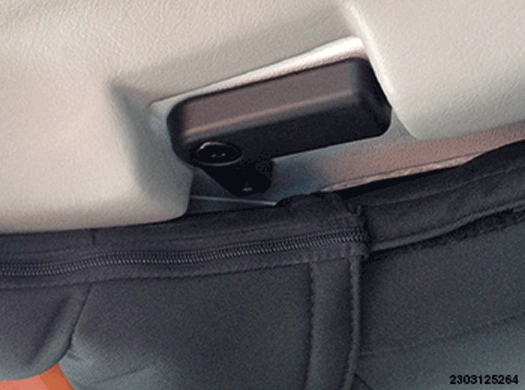

Pull down on the freedom panel and turn the rear L-shaped lock above the shoulder belt anchor.
Turn the center L-shaped locks from the center of the roof panel.

Courtesy of CHRYSLER GROUP, LLC
Repeat these steps to install the left side freedom panel.
