Shaft, Drive, Rear: Installation

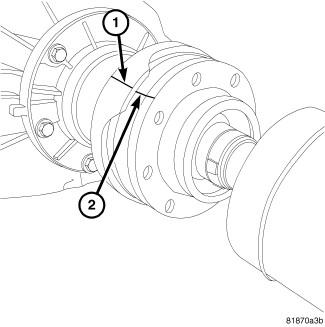

GC0130349Courtesy of CHRYSLER GROUP, LLC
NOTE:

Clean all propeller shaft bolts and apply Mopar® Lock AND Seal Adhesive or equivalent to the threads before installation.

  1. Compress the propeller shaft enough to install it into the axle flange and transmission/transfer case flange.
  2. Align installation reference marks on the transmission/transfer case flange (1) and propeller shaft transmission/transfer end CV joint (2).

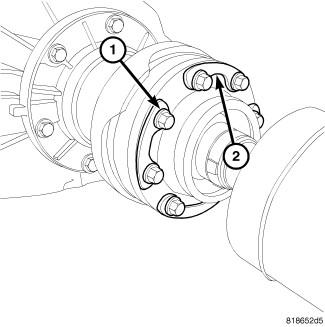

    GC0130347Courtesy of CHRYSLER GROUP, LLC
  3. Install propeller shaft CV joint retainers (2) and bolts (1). Tighten bolts to the proper torque. Refer to TORQUE SPECIFICATIONS .

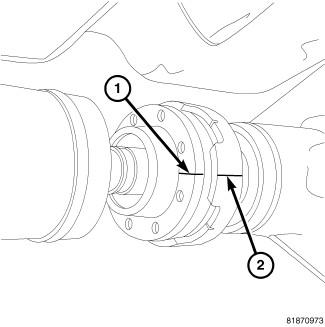

    GC0130350Courtesy of CHRYSLER GROUP, LLC
  4. Align installation reference marks on the propeller shaft CV joint (1) and axle flange (2).

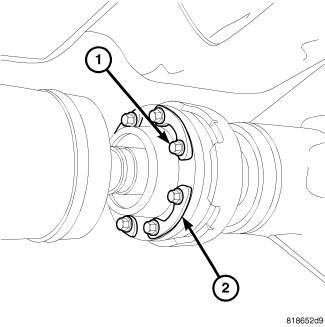

    GC0130348Courtesy of CHRYSLER GROUP, LLC
  5. Install propeller shaft CV joint retainers (2) and bolts (1). Tighten bolts to the proper torque. Refer to TORQUE SPECIFICATIONS .
