Stationary Glass: Windshield: Removal

GC0131509Courtesy of CHRYSLER GROUP, LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to STATIONARY GLASS, WARNING .
  2. Remove rear view mirror. Refer to MIRROR, REARVIEW, REMOVAL .
  3. Using a windshield removal tool with a cable pull handle, or equivalent, separate the glass adhesive from the inside of the vehicle.

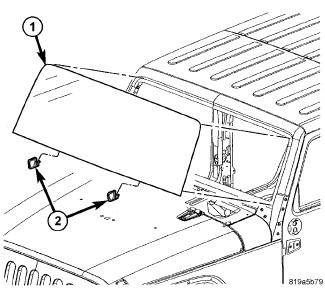

    GC0131512Courtesy of CHRYSLER GROUP, LLC
  4. Carefully remove the windshield (1).
