Stationary Glass: BACKLITE: Removal

Courtesy of CHRYSLER GROUP, LLC

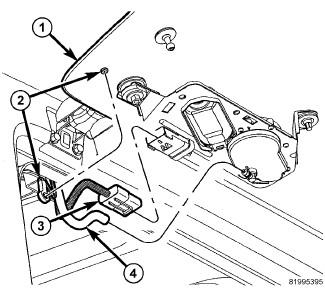

Disconnect the rear wiper motor electrical connectors (3).
Disconnect the washer hose (4).
Disconnect the rear window heater grid connector (2).

Courtesy of CHRYSLER GROUP, LLC

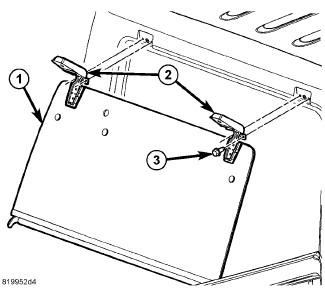

Remove the glass supports (2). Refer to PROP, GAS, BACKLITE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, open the hinge trim covers (2).
Remove the bolts (3) and remove the backlite (1).
