Two Door

Courtesy of CHRYSLER GROUP, LLC

Separate the quarter windows hook and loop strips from the soft top and unzip the quarter windows.
Separate the quarter window sides (2) from the side rail retainers (1) and the door frame and remove the quarter window.

Courtesy of CHRYSLER GROUP, LLC
Unzip the rear window (2) and release window retainer from the rear tailgate retainer (3).

Courtesy of CHRYSLER GROUP, LLC
Release the front latches (1) from the windshield frame loops (2).

Courtesy of CHRYSLER GROUP, LLC
Release the soft top retainers (2) from the upper side and lower rear rail retainers (1).

Courtesy of CHRYSLER GROUP, LLC
Fold the top into the down position.
Remove the pivot bracket bolts (3) from the pivot knuckles (1).

Courtesy of CHRYSLER GROUP, LLC
separate the knuckles (2) from the pivot brackets.

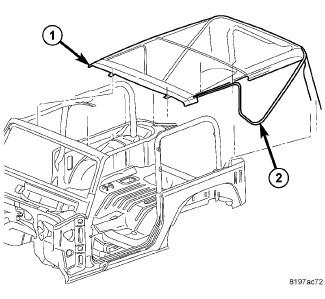

Remove the soft top (1) from the vehicle.
