Panel, Header: Removal

GC0131461Courtesy of CHRYSLER GROUP, LLC
  1. Remove the upper A-pillar trim (2). Refer to PANEL, A-PILLAR TRIM, REMOVAL .

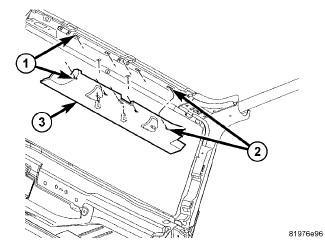

    GC0131465Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips (1) and (2) and remove the windshield molding (3).
