Armrest, Front Center Console: Removal

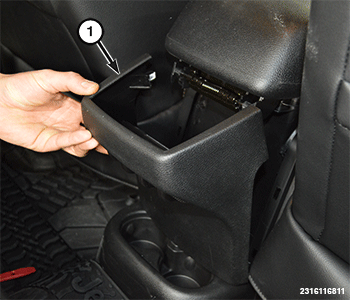

GC0175145Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick, remove the cover panel (1) at the rear of the floor console.
    GC0175103Courtesy of CHRYSLER GROUP, LLC
  2. Lift the armrest.
  3. Using a trim stick (1), remove the cover panel (2) to gain access to the armrest screws.

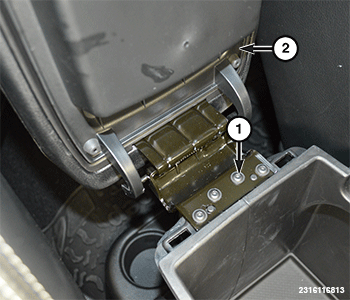

    GC0175079Courtesy of CHRYSLER GROUP, LLC
  4. Remove the four screws (1), then the armrest (2).
