Screen, Air Inlet: Removal

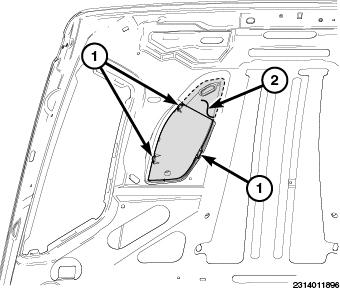

GC0158507Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood, exposing underside of hood and air inlet screen (2).
  2. Using (special tool #C-4755, Trim Stick) or equivalent, press the retaining tabs (1) securing the air inlet screen (2) to the hood.
  3. Remove the air inlet screen (2) from hood.
