Housing, Fuel Fill: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the tail lamp (4). Refer to LAMP, TAIL STOP TURN, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

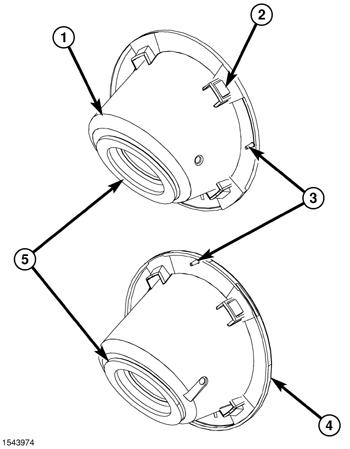

1 - LONG WHEEL BASE HOUSING

2 - RETAINING TABS

3 - ALIGNMENT PINS

4 - SHORT WHEEL BASE HOUSING

5 - FUEL FILLER TUBE GROMMIT

Release the retaining tabs (2).

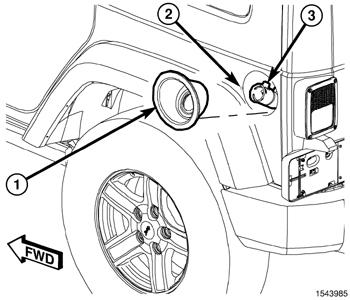

Courtesy of CHRYSLER GROUP, LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the fuel filler housing (1).
