Body - Interior & Exterior: Exterior: Grille: Removal

Courtesy of CHRYSLER GROUP, LLC

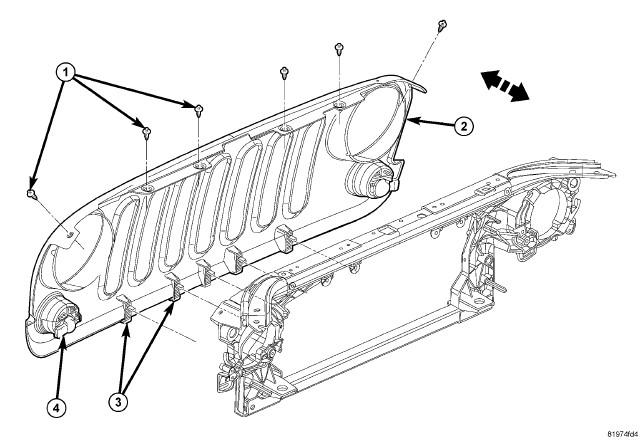

1. Twist the center of the push pin insert to release and remove the six push pin fasteners (1)
2. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, Release the lower clips (3) and separate the grille from the front end module.
3. Disconnect the electrical connectors (4).
