Fender, Front: Removal

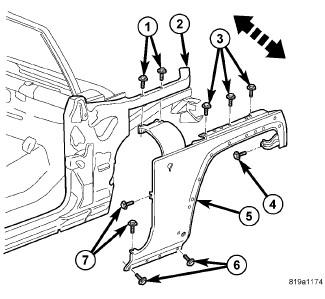

GC0131401Courtesy of CHRYSLER GROUP, LLC
  1. Remove the cowl top panel. Refer to COVER, COWL PANEL, REMOVAL .
  2. Remove the wheel flares. Refer to MOLDING, WHEEL OPENING, REMOVAL .
  3. Remove the wheelhouse splash shield, Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
  4. Remove the windshield frame bracket. Refer to FRAME, WINDSHIELD, REMOVAL .
  5. Remove the cowl bolts (1) and the upper bolts (3).
  6. Remove rear bolts (7) from the door opening.
  7. Remove the sill bolts (6).
  8. Remove the wheelhouse bolt (4) and remove the fender (5).
  9. Remove the antenna from the fender, if equipped.
