Cable, Inside Handle To Latch: Removal

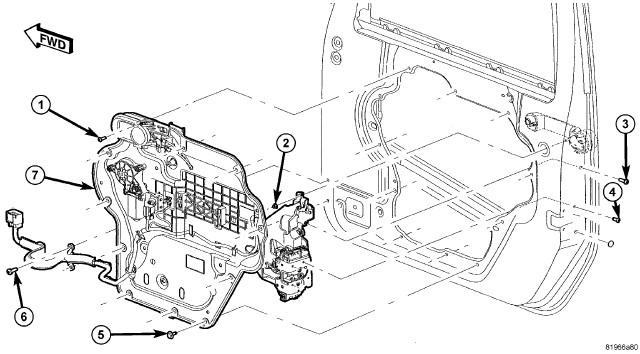

GC0131368Courtesy of CHRYSLER GROUP, LLC
  1. Remove the carrier plate. Refer to PLATE, CARRIER, REMOVAL .

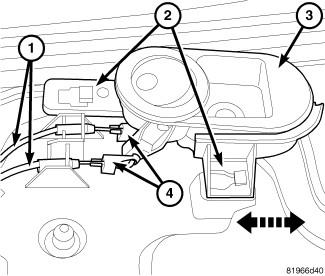

    GC0131369Courtesy of CHRYSLER GROUP, LLC
  2. Release the cable clip at the inside handle (4) and disconnect the cable (1).

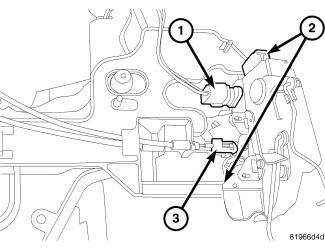

    GC0131370Courtesy of CHRYSLER GROUP, LLC
  3. Release the clips (3) and disconnect the cable from the latch assembly.
  4. Remove the cable from the carrier plate.
