Prop, Gas, BACKLITE: Removal
CAUTION:
Do not use any type of pliers on the machined surface of the gas prop to assist in supporting the hood or decklid. Use a proper device for support, or the help of an assistant.
- Open and support the liftgate with a suitable prop or block.
- Using a small flat bladed tool (3), or equivalent, release the retaining clip (2) while pulling the ball socket (1) away from the ball stud (4).NOTE:
Lift the clips (1) only enough to release the ball studs (3).
- Remove the support cylinder from the upper and lower ball studs.

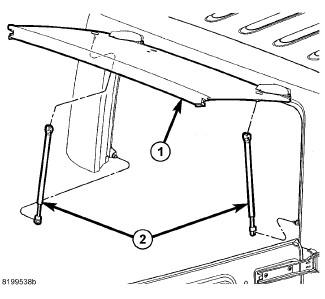

- Remove the support cylinders (2) from the backlite (1).
