DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Latch: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the inner latch trim (2).

   Courtesy of CHRYSLER GROUP, LLC

2. Release the rod clips (1) and disconnect the latch rods (3 and 4).

   Courtesy of CHRYSLER GROUP, LLC

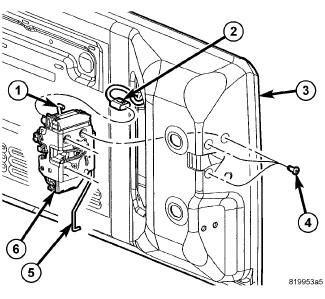

3. Remove the screws (4) and remove the latch (6).
4. Disconnect the electrical connector (2).
