DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Latch: Adjustments

Courtesy of CHRYSLER GROUP, LLC

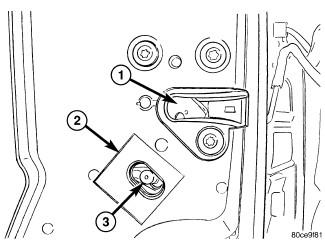

1 - DOOR LATCH

2 - MYLAR TAPE

3 - ADJUSTMENT SCREW

1. Locate access hole and remove the mylar tape (2) covering it.
2. Insert a 5/32" hex-wrench through hole and into adjustment screw (3). Loosen screw.
3. Operate outside handle several times to release any restriction because of mis-alignment.
4. Tighten adjustment screw to 3 N.m (30 in. lbs.).
5. Test handle for proper operation.
