Handle, Exterior: Removal

GC0131481Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the inner latch trim (2).

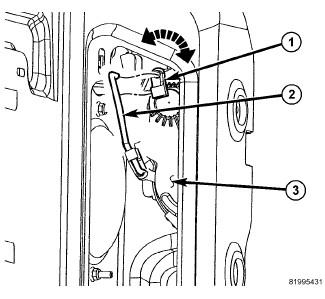

    GC0131485Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the latch rod (2) from the handle (1).
    GC0131483Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nuts (3) and remove the handle (1).
