Cylinder, Lock: Removal

GC0131481Courtesy of CHRYSLER GROUP, LLC

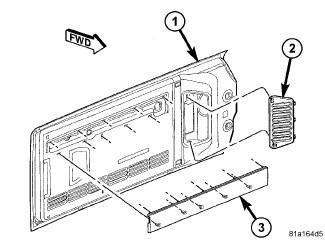

  1. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the inner latch trim (2).
    GC0131482Courtesy of CHRYSLER GROUP, LLC

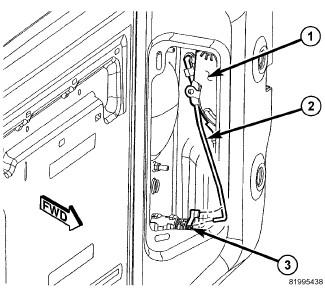

  2. Release the clip (3) and disconnect the lock rod (2).
    GC0131483Courtesy of CHRYSLER GROUP, LLC

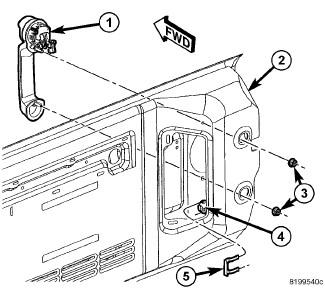

  3. Remove the clip (5).
    GC0131484Courtesy of CHRYSLER GROUP, LLC
  4. Remove the lock cylinder (2) and the gasket (1).
