Gap And Flush: Specifications
GAP AND FLUSH
INDEX
| DESCRIPTION | FIGURE |
|---|---|

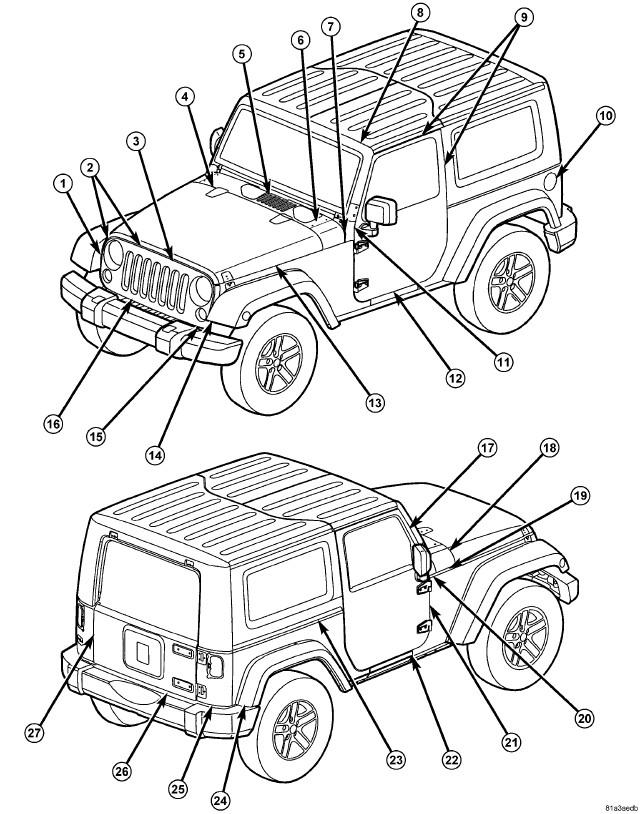

| TWO DOOR | Refer to Fig 1. |

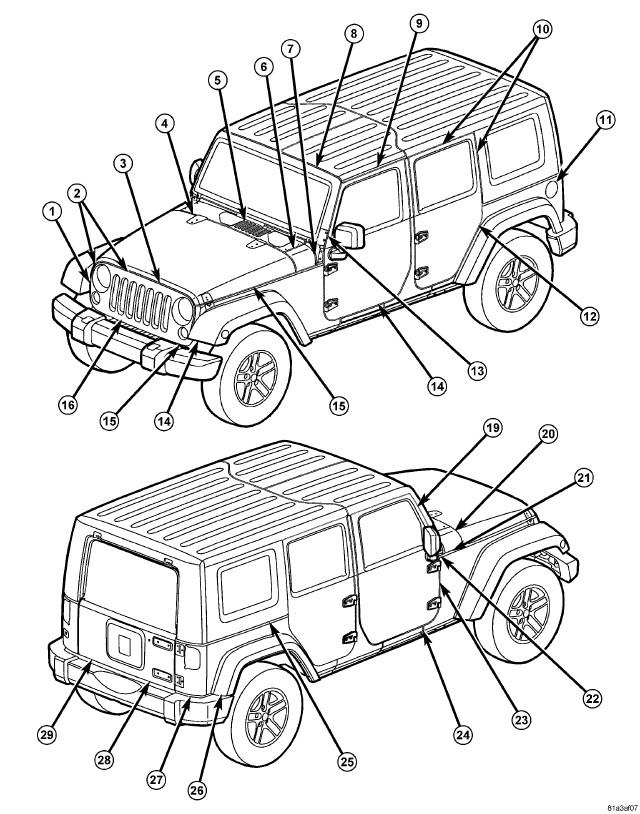

| FOUR DOOR | Refer to Fig 2. |
NOTE:
All dimensions are in millimeters.
GAP AND FLUSH MEASUREMENTS
| DIMENSION | DESCRIPTION | GAP | FLUSH |
|---|---|---|---|
| 1 | Fender to Grille | -- | 0.0 +/- 2.0 |
| 2 | Hood/Fender to Grille | 7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0 |
-- |
| 3 | Hood to Grille | -- | Hood O/F 1.0 +/- 2.0 Parallel within 1.5 |
| 4 | Hood to Cowl Grille | 7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
| 5 | Cowl Grille to Windshield | 5.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
| 6 | Cowl Grille to Cowl End Cap | 5.5 +/- 1.5 | 0.0 +/- 1.5 |
| 7 | Cowl Panel Windshield Reinforcement | To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0 |
-- |
| 8 | Windshield to Hard/Soft Top | 5.0 +/- 2.0 Parallel within 2.0 |
O/F 1.0 +/-2.0 |
| 9 | Hard/Soft Top to Front Door | 5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line |
| 10 | Fuel Filler Door to Body Side | 0.0 + 1.5/-0.0 | -- |
| 11 | Windshield Reinforcement to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 12 | Front Door to Body Side | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
| 13 | Hood to Fender | 6.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 14 | Fender/Wheel Flare to Fascia | 16.0 +/- 4.0 Parallel within 3.0 |
-- |
| 15 | Grille to Bumper | 11.0 +/- 4.0 Parallel within 3.0 |
-- |
| 16 | Grille to Valance Cover | 13.0 +/- 4.0 | -- |
| 17 | Windshield to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
| 18 | Hood to Cowl Grille End Cap | 7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 1.5 |
| 19 | Cowl End Cap to Fender | 5.5 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 20 | Windshield Reinforcement to Fender | 7.0 +/- 2.0 | 0.0 +/- 1.5 |
| 21 | Fender to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 22 | Fender to Body Side | 5.0 +/- 1.5 | 0.0 +/- 1.5 |
| 23 | Hard/Soft Top to Body | 16.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 24 | Rear Bumper to Wheel Flare | 19.0 +/- 5.0 | 0.0 +/- 4.0 |
| 25 | Rear Bumper to Body Side | 13.0 +/- 3.0 | -- |
| 26 | Rear Bumper to Swing Gate | 34.5 +/- 3.0 Parallel within 3.0 |
-- |
| 27 | Swing Gate to Body | 5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0 |
0.0 +/- 1.5 Parallel within 1.5 |
NOTE:
All dimensions are in millimeters.
| DIMENSION | DESCRIPTION | GAP | FLUSH |
|---|---|---|---|
| 1 | Fender to Grille | -- | 0.0 +/- 2.0 |
| 2 | Hood/Fender to Grille | 7.0 +/- 2.0 Parallel within 1.5 Side to Side 2.0 |
-- |
| 3 | Hood to Grille | -- | Hood O/F 1.0 +/- 2.0 Parallel within 1.5 |
| 4 | Hood to Cowl Grille | 7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
| 5 | Cowl Grille to Windshield | 5.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 2.0 |
| 6 | Cowl Grille to Cowl End Cap | 5.5 +/- 1.5 | 0.0 +/- 1.5 |
| 7 | Cowl Panel Windshield Reinforcement | To Windshield 4.0 +/- 1.5 Parallel within 1.5 To Cowl End Cap 3.0 +/- 2.0 |
-- |
| 8 | Windshield to Hard/Soft Top | 5.0 +/- 2.0 Parallel within 2.0 |
O/F 1.0 +/-2.0 |
| 9 | Hard/Soft Top to Front Door | 5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 |
| 10 | Hard/Soft Top to Rear Door | 5.0 +/- 2.0 Parallel within 1.5 |
12.0 +/- 2.0 at Drip Rail 0.0 +/- 1.5 at Belt Line |
| 11 | Fuel Filler Door to Body Side | 0.0 + 1.5/-0.0 | -- |
| 12 | Rear Door to Body Side | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
| 13 | Windshield Reinforcement to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 14 | Front Door to Body Side | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
| 15 | Hood to Fender | 6.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 16 | Fender/Wheel Flare to Fascia | 16.0 +/- 4.0 Parallel within 3.0 |
-- |
| 17 | Grille to Bumper | 11.0 +/- 4.0 Parallel within 3.0 |
-- |
| 18 | Grille to Valance Cover | 13.0 +/- 4.0 | -- |
| 19 | Windshield to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 Allow additional +/- 0.5 with Side Curtain |
| 20 | Hood to Cowl Grille End Cap | 7.0 +/- 2.0 Parallel within 1.5 |
0.0 +/- 1.5 |
| 21 | Cowl End Cap to Fender | 5.5 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 22 | Windshield Reinforcement to Fender | 7.0 +/- 2.0 | 0.0 +/- 1.5 |
| 23 | Fender to Door | 5.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 24 | Fender to Body Side | 5.0 +/- 1.5 | 0.0 +/- 1.5 |
| 25 | Hard/Soft Top to Body | 16.0 +/- 1.5 Parallel within 1.5 |
0.0 +/- 1.5 |
| 26 | Rear Bumper to Wheel Flare | 19.0 +/- 5.0 | 0.0 +/- 4.0 |
| 27 | Rear Bumper to Body Side | 13.0 +/- 3.0 | -- |
| 28 | Rear Bumper to Swing Gate | 34.5 +/- 3.0 Parallel within 3.0 |
-- |
| 29 | Swing Gate to Body | 5.0 +/- 1.5 Parallel within 1.5 Side to Side 2.0 |
0.0 +/- 1.5 Parallel within 1.5 |
