Bezel, Instrument Cluster: Removal

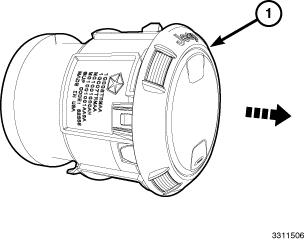

- Remove the HVAC outlet (1). Refer to OUTLET, AIR, REMOVAL .
- Position the steering wheel into the full down position.
- Remove the steering column opening cover (3). Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
- Remove the two center HVAC outlets. Refer to OUTLET, AIR, REMOVAL
.
- If equipped with power windows, using a (special tool #C-4755, Trim Stick) or a suitable flat bladed tool, gently pry the switch assembly (2) away from the instrument cluster bezel (1).
- For vehicles without power windows, using a (special tool #C-4755, Trim Stick)or a suitable flat bladed tool, gently pry the storage bin assembly away from the bezel and remove.
- Disconnect the switch assembly electrical connector and remove the switch.
- Remove the storage bin mat and remove the top screw (1).
- Remove the screw (2) from the switch opening.
- Remove the screws (3).CAUTION:
Do not use tools to release the lower bezel retaining clips or damage to the bezel and reinforcment ring can occur.

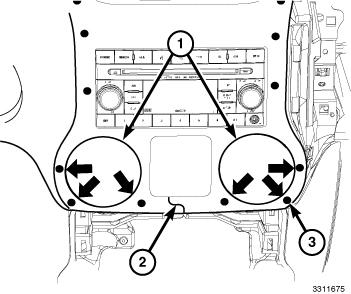

- Without the use of tools reach into the IP cavity through the vent openings (1) and firmly grasp the lower bezel (2) behind the bezel reinforcement ring and carefully pull the bezel back to release the lower retaining clips (3).
- Release the remaining 13 retaining clips (1) and remove the bezel (2).
- Disconnect the power window switch electrical connector, if equipped.
