Panel, Door Trim: Removal

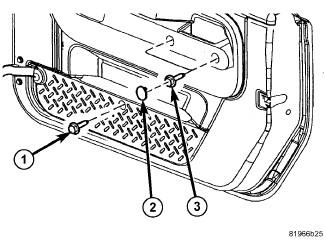

GC0131392Courtesy of CHRYSLER GROUP, LLC
  1. Remove the trim caps (2) and remove the pull handle screws (3).
  2. Remove the lower screw (1).

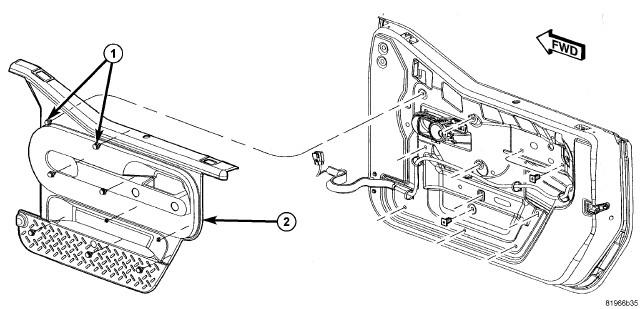

    GC0131391Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick (special tool #C-4829A, Remover, Trim) or equivalent, separate the push pin fasteners (1) and remove the trim panel (2).
