Pod, Switch: Installation

NOTE:

Take the proper precautions to protect the face of the center bezel from cosmetic damage while performing this procedure.

Courtesy of CHRYSLER GROUP, LLC

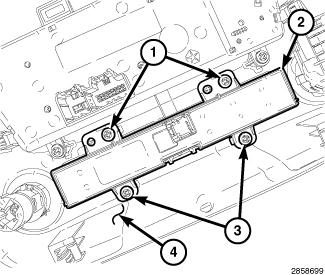

Position the accesssory switch pod (2) onto the back of the instrument panel center bezel (4).
Install the four screws (1 and 3) that secure the A/C-heater control to the center bezel. Tighten the screws to 2.2 N.m (20 in. lbs.).
Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
Reconnect the negative battery cable.
Verify proper heated seat system operation.
