Header, Folding Top: Removal

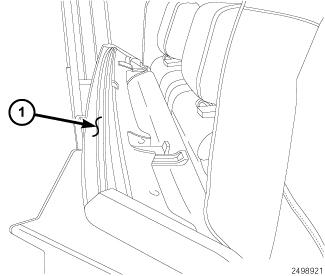

- Release and fold back the soft top header assembly (1) to the vehicle.NOTE:
When removing the screws remember their locations because they will differ in size and style.

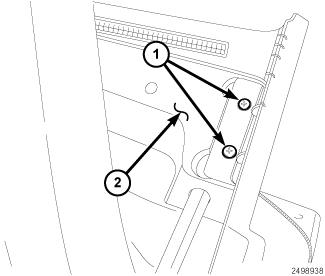

- Carefully remove the screws (1) at each end (side) of the header seal plate (2).

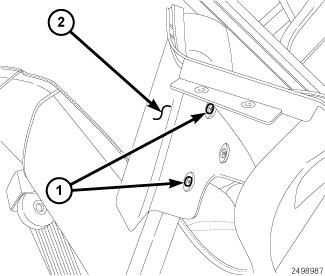

- Remove the screws (1) under the flange on the left and right sides of the header assembly (2).

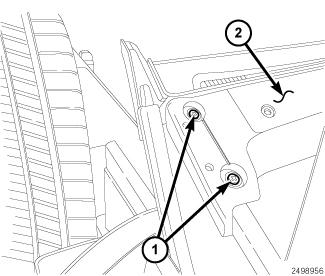

- Remove the two screws (1) on the upper header assembly (2) from both sides.
- Remove the header assembly and all remaining fasteners (1).

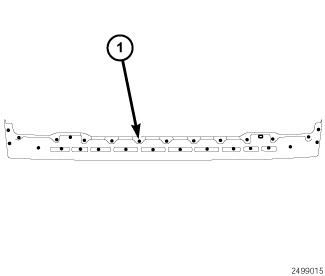

- Remove the windshield header seal plate from the soft top.
