Headlamp Alignment

NOTE:

Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern on the alignment screen from the horizontal line to 50 millimeters (2 inches) below the horizontal line for domestic market vehicles, or to 125 millimeters (5 inches) below the horizontal line for export market vehicles. No horizontal (right/left) adjustment is required for this headlamp beam pattern in domestic market vehicles. Export market vehicles have a second horizontal (right/left) adjustment screw provided. The high beam pattern will be correct when the low beams are properly aimed.

Turn the headlamps ON and select the LOW beams for vehicles in all markets.

Courtesy of CHRYSLER GROUP, LLC

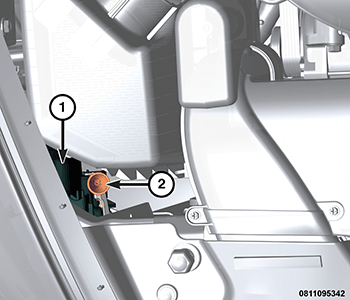

On all vehicles except those with headlamp leveling, use a screwdriver to rotate the headlamp vertical adjustment screw (2) on the side of the front lamp unit (1) just inboard of the fender.
