Fog Lamp Alignment

NOTE:

A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp for domestic market vehicles.

  1. Turn the fog lamps ON.
  2. Open the access cover located in the front of the wheel well splash shield.

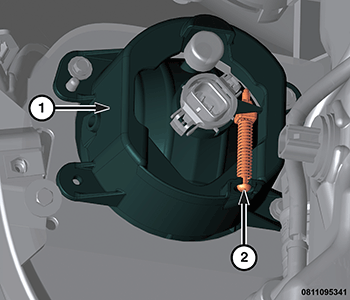

    GC0173323Courtesy of CHRYSLER GROUP, LLC
  3. Using a screwdriver, rotate the vertical adjustment screw (2) on each lamp to adjust the fog lamp (1) beam height as required.
  4. Close the access cover located in the front of the wheel well splash shield.
