P1CBE-00-Pump Always On - Circuit Current Above Threshold: Notes

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

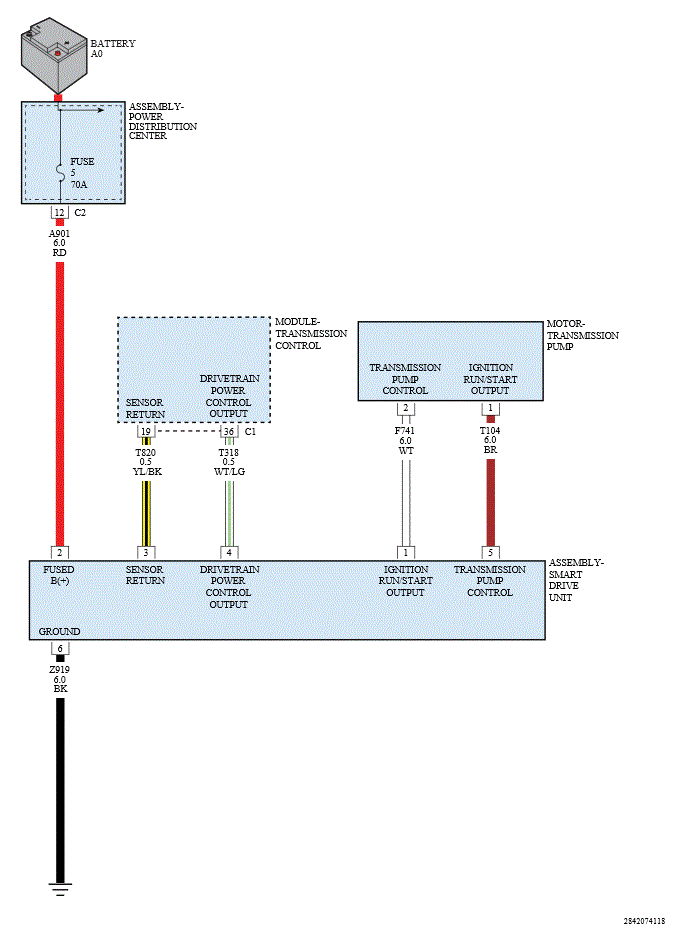

Fig 1: Transmission Pump Motor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
