Primary Release Cable

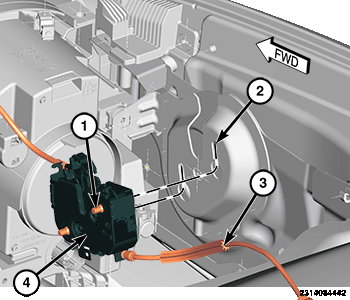

Fig 1: Latch Assembly, Mounting Bracket, Cable & Studs

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Take note of the cable routing for correct installation.

Using a grease pencil or equivalent, mark the position of the hood latch to aid in installation.
Loosen the mounting studs (1) and slide the latch assembly (4) down and release from the mounting bracket (2).
Disconnect the cable (3).

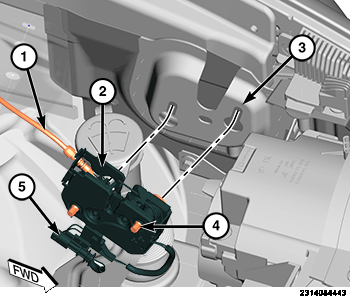

Fig 2: Latch Assembly, Mounting Bracket, Cable, Studs & Connector
Courtesy of CHRYSLER GROUP, LLC
Using a grease pencil or equivalent, mark the position of the hood latch to aid in installation.
Loosen the mounting studs (4) and slide the latch assembly (2) down and release from the mounting bracket (3).
Disconnect the cable (1).

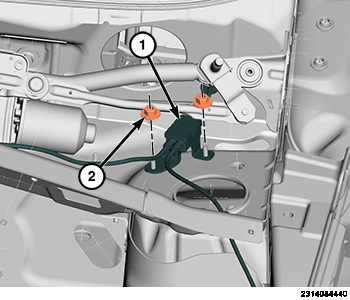

Fig 3: Splitter & Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the cowl trim cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .
Remove the nuts (2) and separate the splitter (1) from the cowl panel.

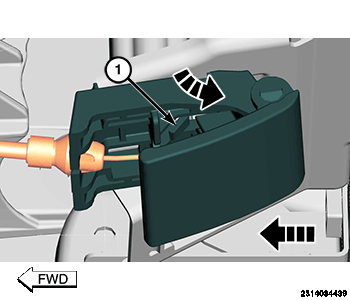

Fig 4: Removing Hood Release Handle
Courtesy of CHRYSLER GROUP, LLC
Pull down on the retaining clip (1) and push the hood release handle forward.

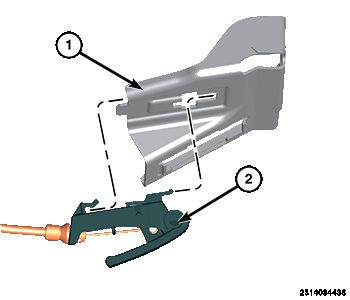

Fig 5: Hood Release Handle & Bracket
Courtesy of CHRYSLER GROUP, LLC
Separate the hood release handle (2) from the mounting bracket (1).
Disconnect the cable.

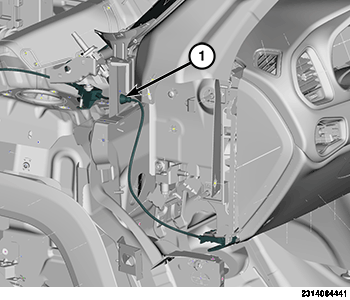

Fig 6: Cable Grommet
Courtesy of CHRYSLER GROUP, LLC
Release the cable grommet (1) from the cowl panel.

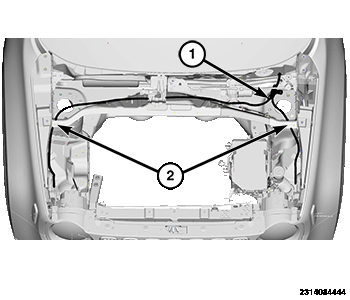

Fig 7: Cable Assembly & Grommet
Courtesy of CHRYSLER GROUP, LLC
Release the cable grommets (2) from the cowl and remove the cable assembly (1).
