Grille, Defroster: Removal: Removal

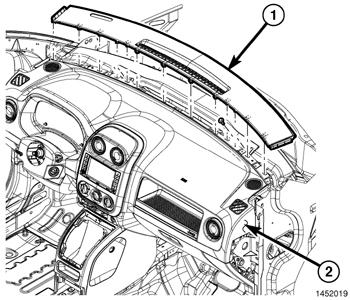

Fig 1: Defroster Grille
GC0099100Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the driver and passenger A-pillars from the vehicle. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, release the clips and separate the A-pillar trim panel from the A-pillar.
  3. Using a trim stick or equivalent, carefully pry up on the defroster grille to disengage the clip retainers from the instrument panel.
  4. Remove the defroster grille from the vehicle.
