P1629-TCM Internal - Solenoid Supply/ Watchdog: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article

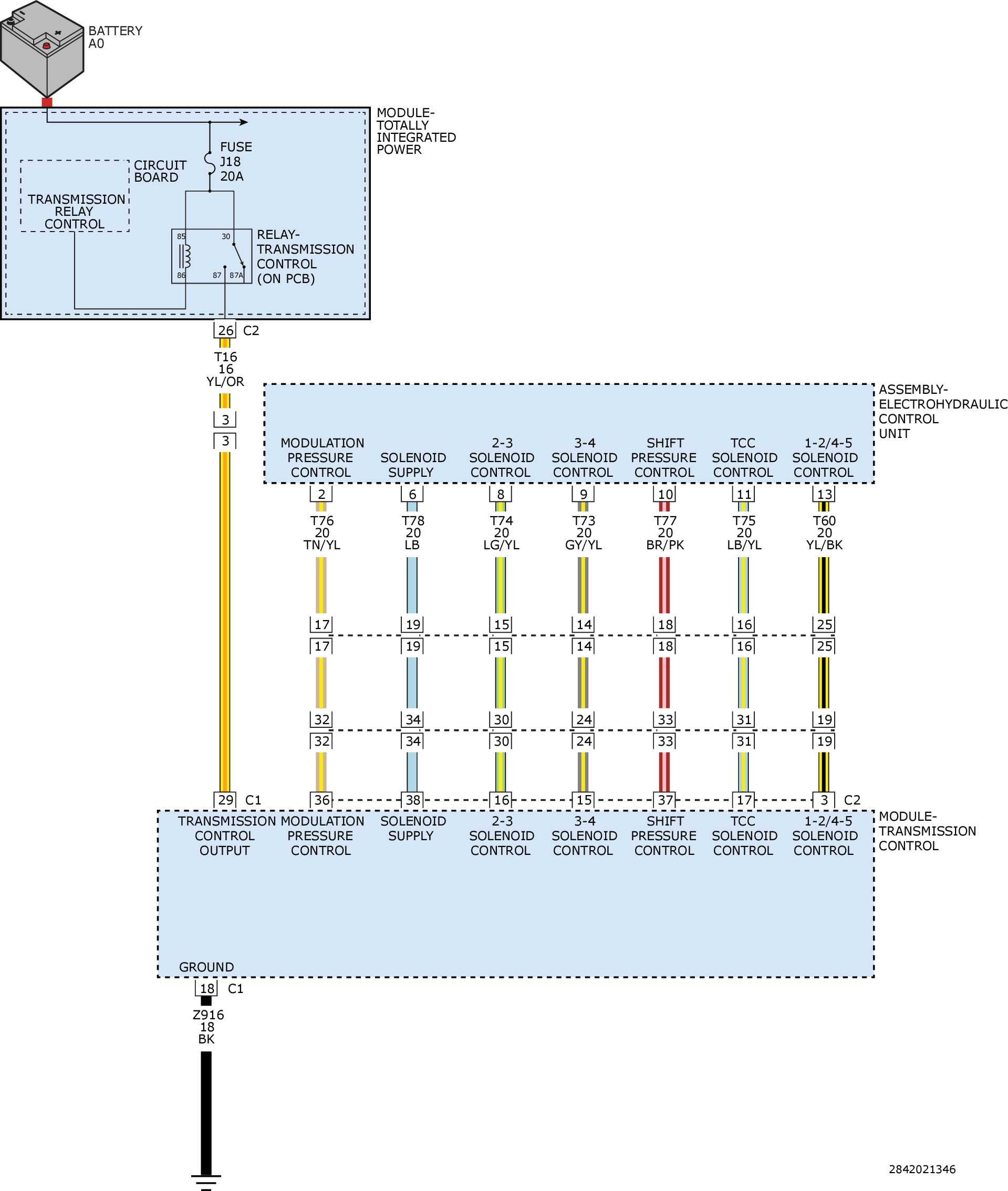

Fig 1: TCM Power Supply & Solenoid Control Circuits

Courtesy of CHRYSLER GROUP, LLC
