Standard Procedure - Fluid Drain And Fill

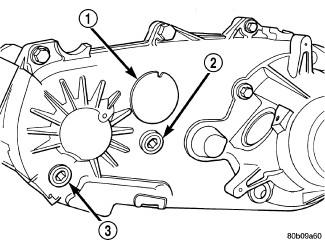

Fig 1: Identifying Id Tag, Fill Plug And Drain Plug

Courtesy of CHRYSLER GROUP, LLC

The fill (2) and drain (3) plugs are both in the rear case. See Fig 1. Correct fill level is to the bottom edge of the fill plug hole. Be sure the vehicle is level to ensure an accurate fluid level check.
