Shock Absorber, Suspension: Installation: Installation

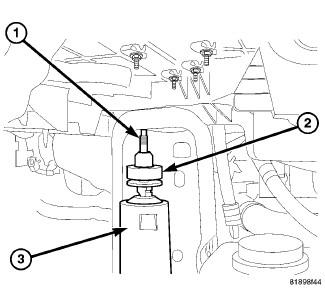

Fig 1: Shock Upper

Courtesy of CHRYSLER GROUP, LLC

1. Position the retainer and grommet (2) on the upper stud (1). Insert the shock absorber (3) through the shock bracket hole and tighten to 27 N.m (20 ft. lbs.).

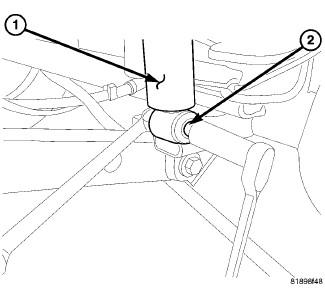

   Fig 2: Shock Lower

   Courtesy of CHRYSLER GROUP, LLC
2. Install the lower part of the shock (1) into the bracket.
3. Install the lower bolt and nut (2). Tighten nuts to 98 N.m (72 ft. lbs.).
4. remove the support and lower the vehicle.
