Rear Suspension: Spring(S): Removal: Removal

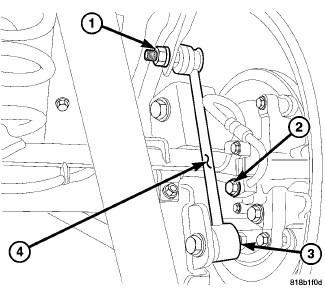

Fig 1: Stabilizer Link

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Position a hydraulic jack under the axle to support it.
2. Disconnect the stabilizer bar links (3) from the axle brackets. Refer to STABILIZER BAR, REAR SUSPENSION, REMOVAL .

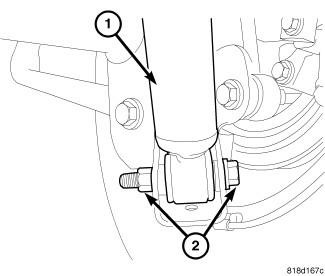

   Fig 2: Lower Shock Mounting

   Courtesy of CHRYSLER GROUP, LLC
3. Disconnect the shock absorbers from the axle brackets (2). Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL .

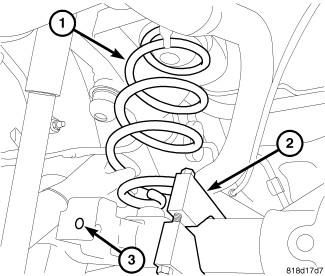

   Fig 3: Spring R & I

   Courtesy of CHRYSLER GROUP, LLC
4. Disconnect the track bar from the axle bracket (3). Refer to TRACK BAR, REAR, REMOVAL .
5. Lower the axle until the spring (1) is free from the upper mount seat and remove the spring (1).
