Shock Absorber, Suspension: Installation: Installation

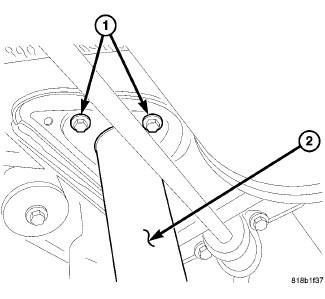

Fig 1: Upper Shock Mounting

Courtesy of CHRYSLER GROUP, LLC

1. Install the shock absorber (2) on the upper frame rail and install mounting bolts (1).
2. Tighten the upper bolts (1) to 57 N.m (42 ft. lbs.).
   Fig 2: Lower Shock Mounting

   Courtesy of CHRYSLER GROUP, LLC
3. Install lower bolt and nut (2) finger tight.
4. Remove the supports and lower the vehicle.
5. Tighten the lower nut to 88 N.m (65 ft. lbs.).
