Line, A/C Discharge: Removal: Removal

WARNING:

Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.

NOTE:

2.8L engine model shown in illustration. 3.6L engine model similar.

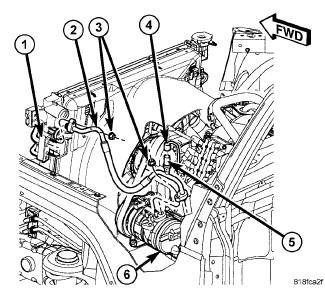

Fig 1: Discharge Line
GC0131707Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. Refer to PLUMBING, STANDARD PROCEDURE .
  3. Remove the coolant recovery container. Refer to BOTTLE, COOLANT RECOVERY, REMOVAL .
  4. On 2.8L engine models, disconnect the charge air cooler outlet hose from the throttle body and position the hose out of the way.
  5. On 2.8L engine models, disconnect the wire harness connector (4) from the A/C pressure transducer (5) and remove the transducer, if required. Refer to TRANSDUCER, A/C PRESSURE, REMOVAL .
  6. Remove the nuts (3) that secure the A/C discharge line (2) to the A/C condenser (1) and the A/C compressor (6).
  7. Disconnect the A/C discharge line from the A/C condenser and A/C compressor and remove and discard the O-ring seals and gaskets.
  8. Install plugs in, or tape over the opened discharge line fittings and condenser and compressor ports.
