Section 3 (NV241 Or Transfer Case (Service Information)): Description: Description: Identification

WARNING: This page is about a different variant/trim than selected.

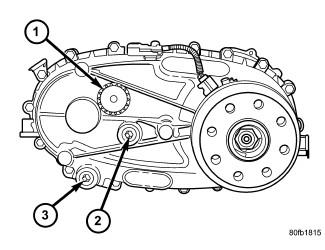

Fig 1: Identifying Transfer Case Identification Tag & Fill/Drain Plugs

Courtesy of CHRYSLER GROUP, LLC

1 - IDENTIFICATION TAG

2 - FILL PLUG

3 - DRAIN PLUG

An identification tag (1) is attached to the rear case of every transfer case. Refer to Fig 1. The tag provides the transfer case model number, assembly number, serial number, and low range ratio.

The transfer case serial number also represents the date of build.
