Front Output Shaft And Drive Chain

WARNING: This page is about a different variant/trim than selected.

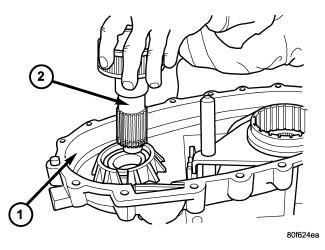

Fig 1: Removing/Installing Front Output Shaft

Courtesy of CHRYSLER GROUP, LLC

1 - FRONT CASE HALF

2 - FRONT OUTPUT SHAFT

Install front output shaft (2) into the font output shaft bearing.

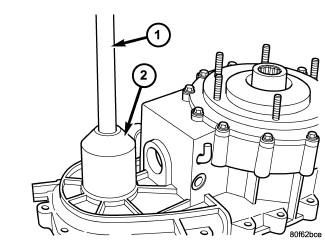

Fig 2: Front Output Shaft Seal Installation
Courtesy of CHRYSLER GROUP, LLC

1 - UNIVERSAL HANDLE C-4171

2 - SEAL INSTALLER 9041
Install the front output shaft snap-ring onto the front output shaft.

Install new front output seal in front case with Seal Installer (special tool #9041, Installer, Seal) (2) and Universal Handle (special tool #C-4171, Driver Handle, Universal) (1).

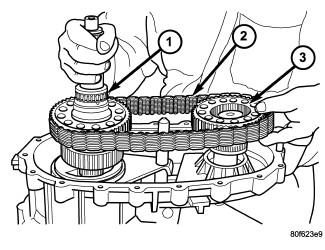

Fig 3: Removing/Installing Mainshaft, Drive Chain & Front Sprocket

Courtesy of CHRYSLER GROUP, LLC

1 - MAINSHAFT

2 - DRIVE CHAIN

3 - DRIVE SPROCKET

Insert front sprocket (3) in drive chain (2).
Install drive chain around mainshaft drive sprocket. Then position front sprocket over front output shaft.

Install the mainshaft (1) into the range hub and mode sleeve and seat the front drive sprocket onto the front output shaft.

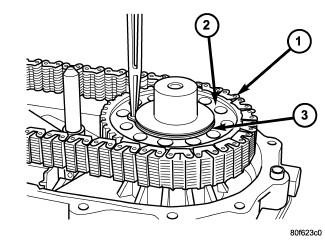

Fig 4: Removing/Installing Front Drive Sprocket Snap-Ring

Courtesy of CHRYSLER GROUP, LLC

1 - DRIVE CHAIN

2 - FRONT DRIVE SPROCKET

3 - SNAP-RING

Install the front drive sprocket retaining ring (3).

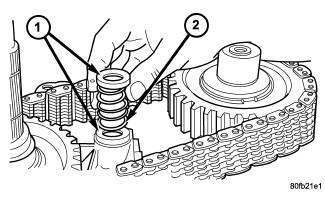

Fig 5: Shift Rail Spring And Cups Installation
Courtesy of CHRYSLER GROUP, LLC

1 - CUPS (2)

2 - SPRING
Install spring (2) and cups (1) on shift rail.

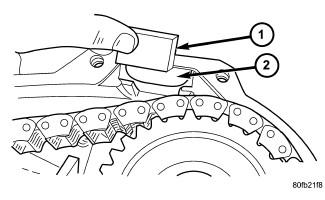

Fig 6: Case Magnet Installation
Courtesy of CHRYSLER GROUP, LLC

1 - MAGNET

2 - CASE POCKET
Insert magnet (1) in front case pocket (2).
