Schematics And Diagrams

WARNING: This page is about a different variant/trim than selected.

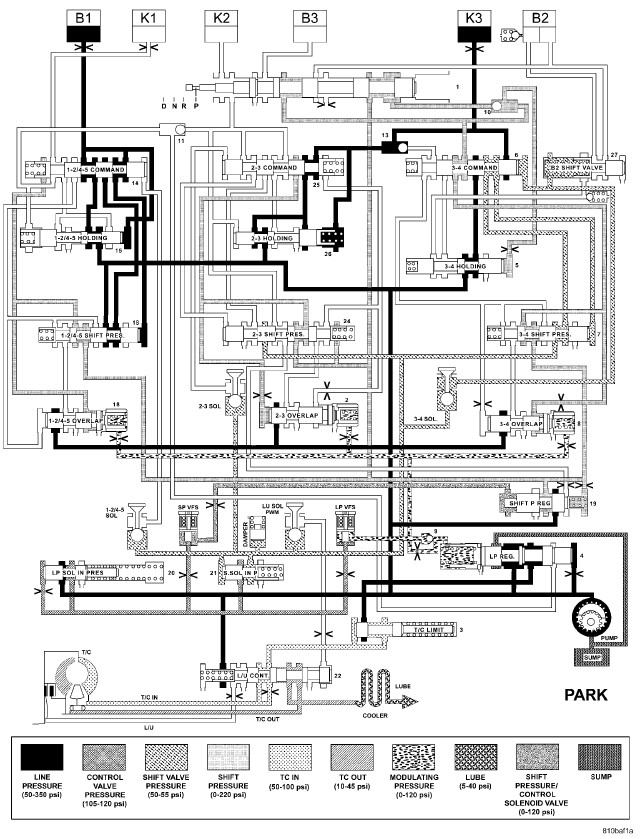

Fig 1: Hydraulic Flow In Park

GC0095840

Courtesy of CHRYSLER GROUP, LLC

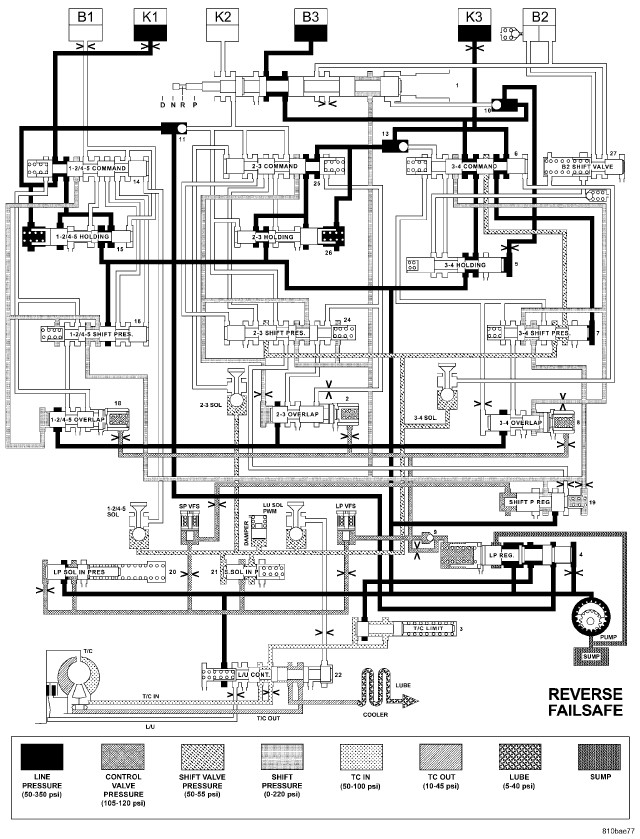

Fig 2: Hydraulic Flow In Reverse - Failsafe

GC0081200

Courtesy of CHRYSLER GROUP, LLC

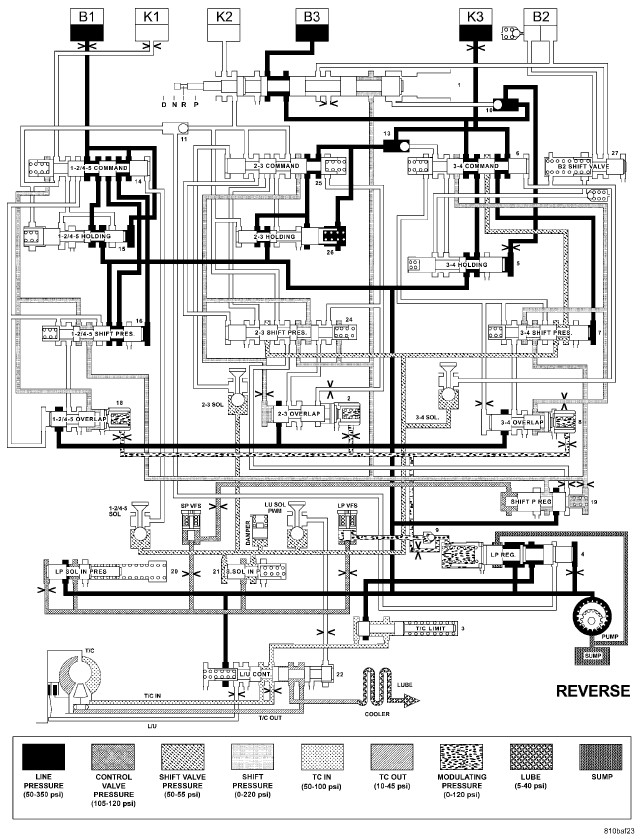

Fig 3: Hydraulic Flow In Reverse

GC0081201

Courtesy of CHRYSLER GROUP, LLC

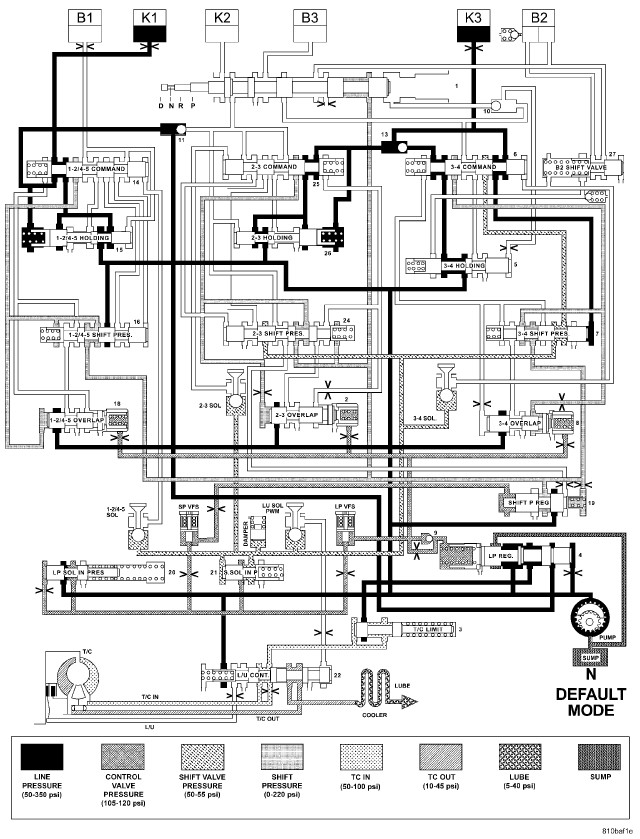

Fig 4: Hydraulic Flow In Neutral - Default

GC0081202

Courtesy of CHRYSLER GROUP, LLC

Fig 5: Hydraulic Flow In Neutral

GC0207816

Courtesy of CHRYSLER GROUP, LLC

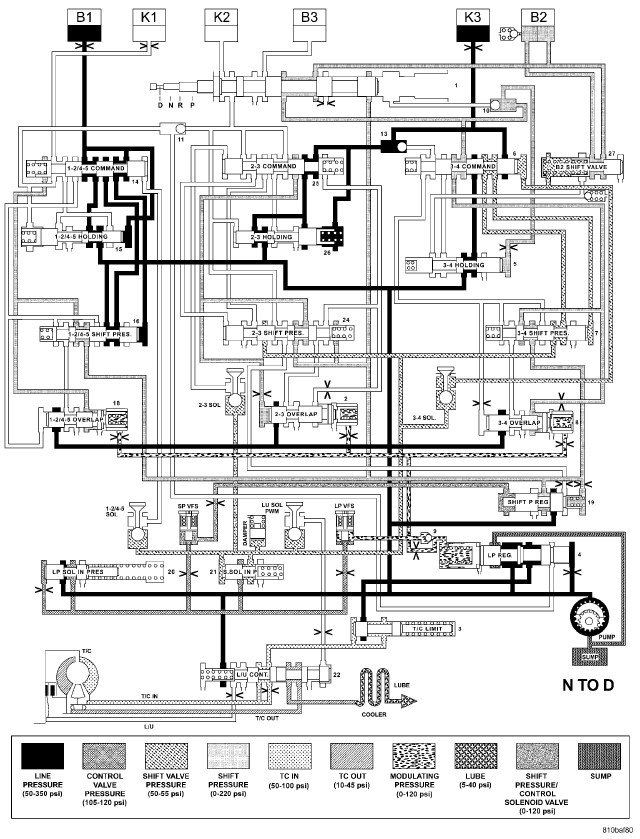

Fig 6: Hydraulic Flow In Neutral To Drive Transition

GC0095841

Courtesy of CHRYSLER GROUP, LLC

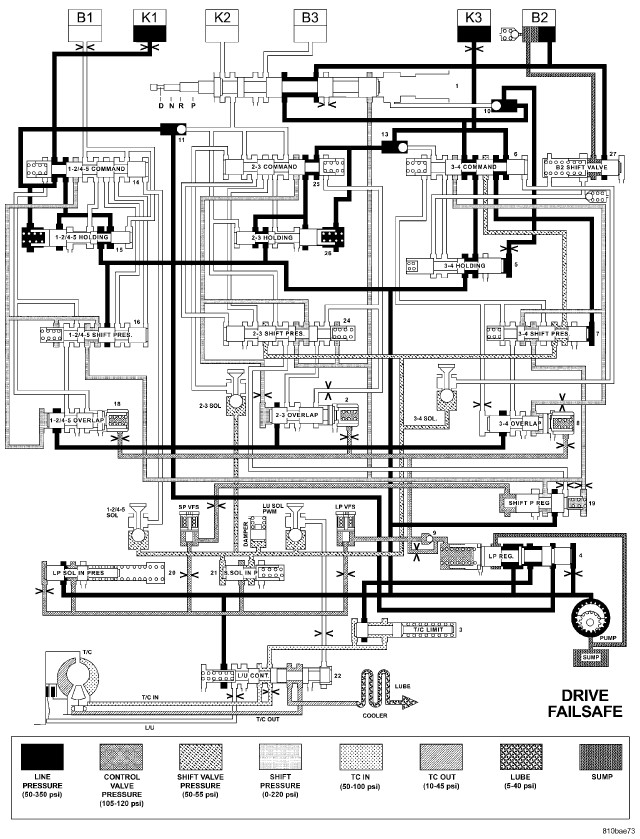

Fig 7: Hydraulic Flow In Drive - Failsafe

GC0095842

Courtesy of CHRYSLER GROUP, LLC

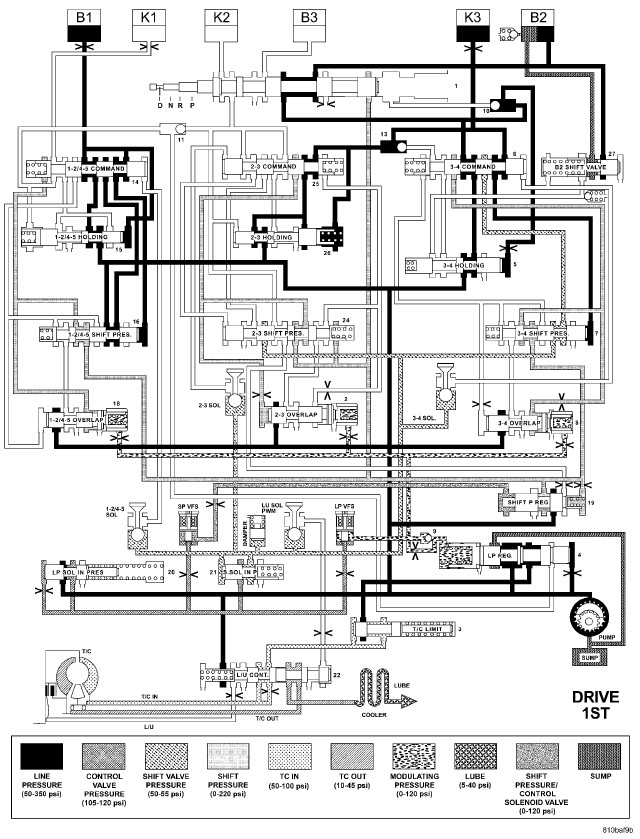

Fig 8: Hydraulic Flow In Drive - First Gear

GC0095843

Courtesy of CHRYSLER GROUP, LLC

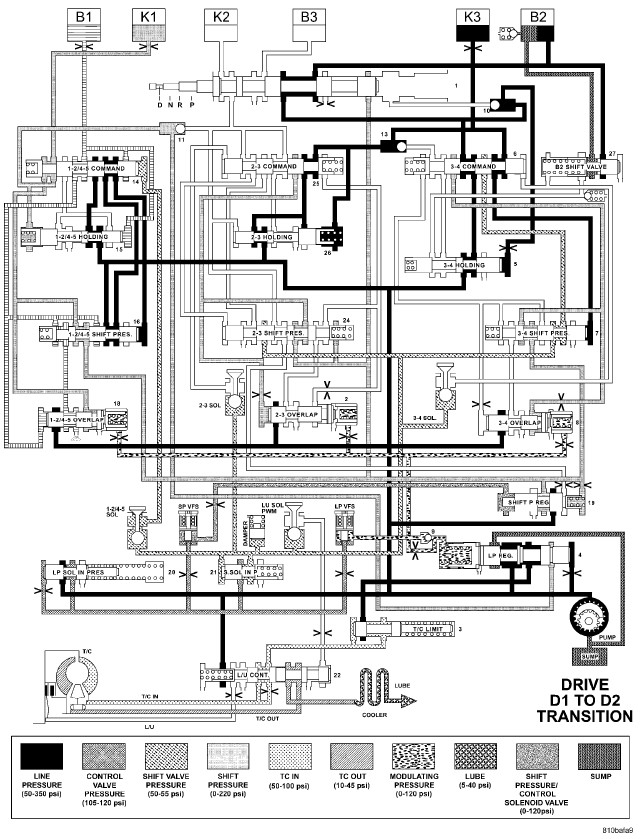

Fig 9: Hydraulic Flow In Drive - First To Second Gear Transition

GC0081204

Courtesy of CHRYSLER GROUP, LLC

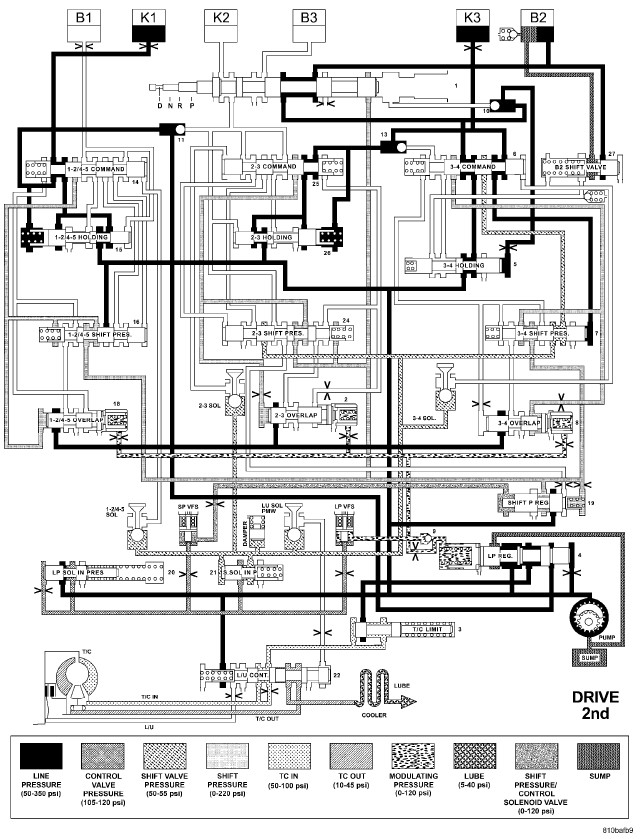

Fig 10: Hydraulic Flow In Drive - Second Gear

GC0081205

Courtesy of CHRYSLER GROUP, LLC

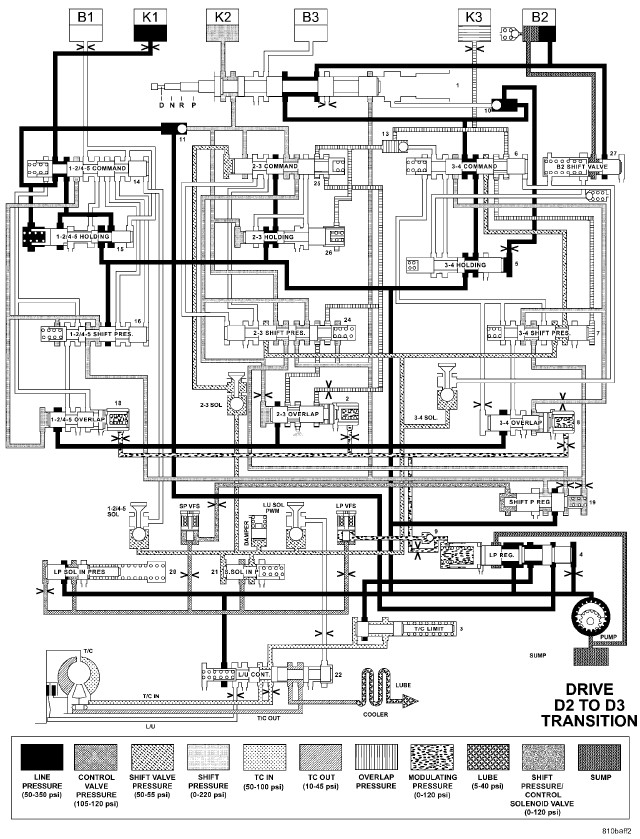

Fig 11: Hydraulic Flow In Drive - Second To Third Gear Transition

GC0081206

Courtesy of CHRYSLER GROUP, LLC

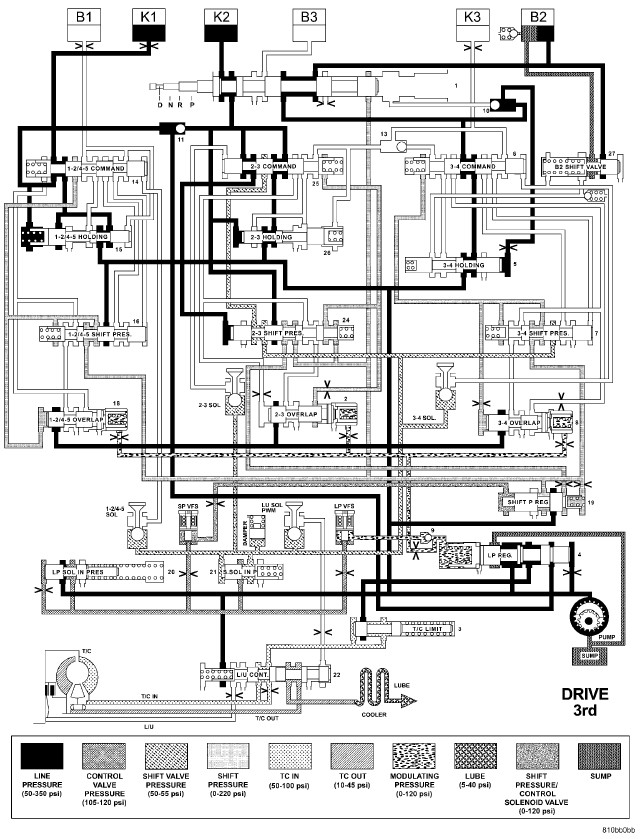

Fig 12: Hydraulic Flow In Drive - Third Gear

GC0081207

Courtesy of CHRYSLER GROUP, LLC

Fig 13: Hydraulic Flow In Drive - Third To Fourth Gear Transition

GC0081208

Courtesy of CHRYSLER GROUP, LLC

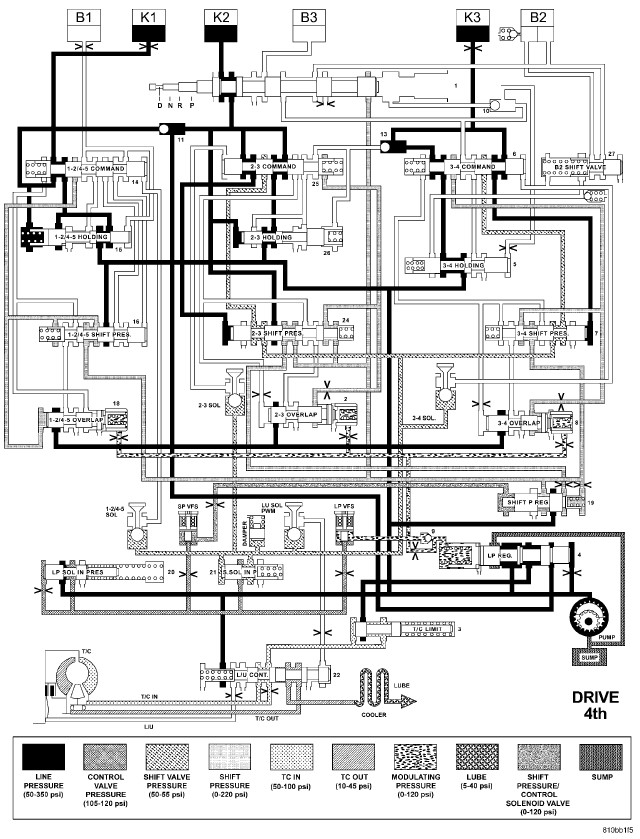

Fig 14: Hydraulic Flow In Drive - Fourth Gear

GC0081209

Courtesy of CHRYSLER GROUP, LLC

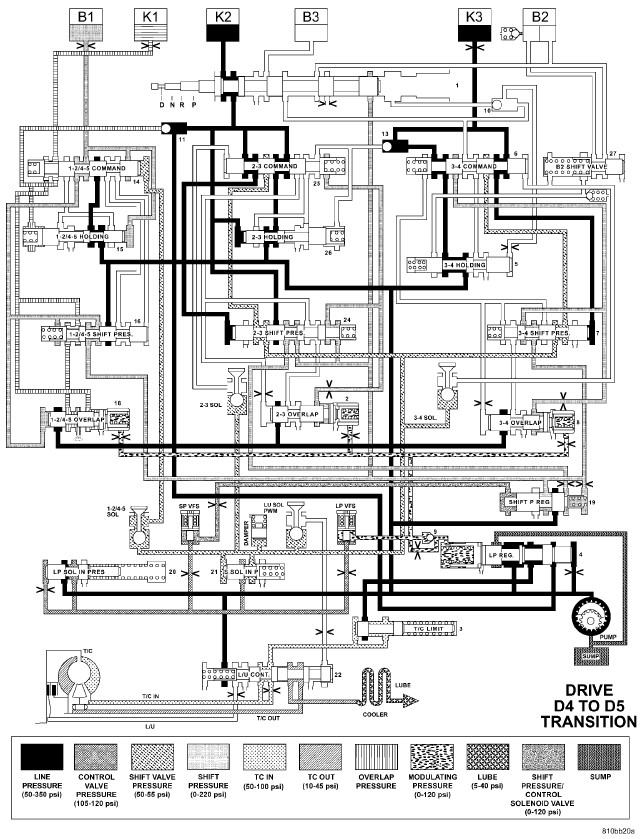

Fig 15: Hydraulic Flow In Drive - Fourth To Fifth Gear Transition

GC0081210

Courtesy of CHRYSLER GROUP, LLC

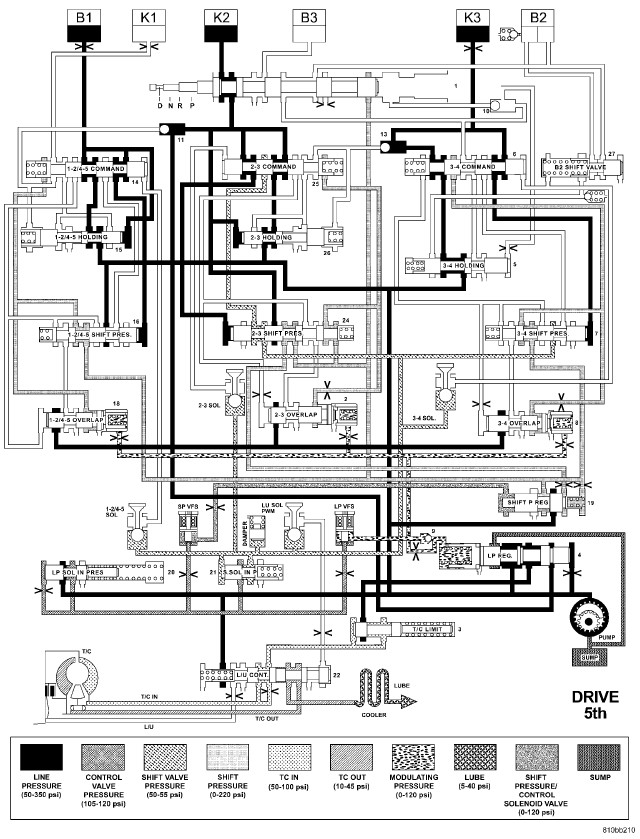

Fig 16: Hydraulic Flow In Drive - Fifth Gear

GC0081211

Courtesy of CHRYSLER GROUP, LLC

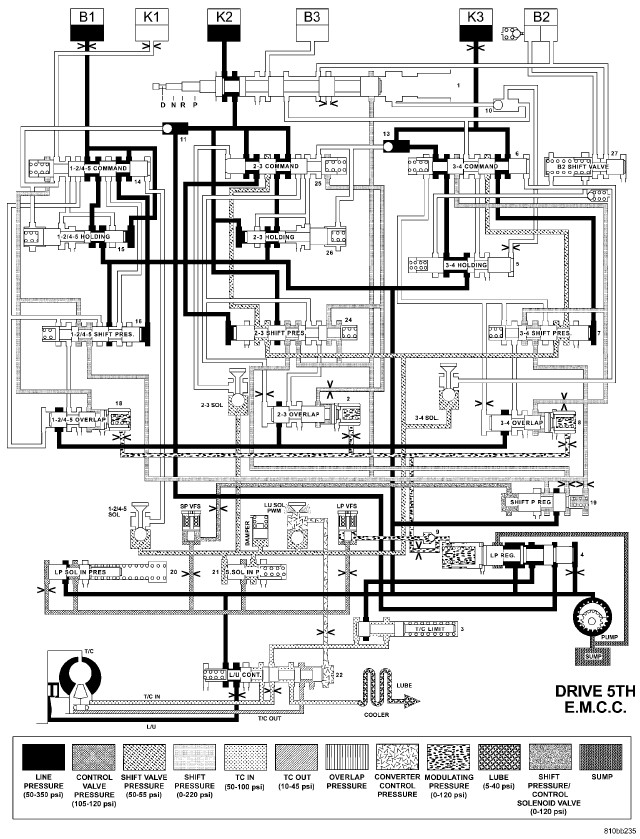

Fig 17: Hydraulic Flow In Drive - Fifth Gear - EMCC

GC0081212

Courtesy of CHRYSLER GROUP, LLC

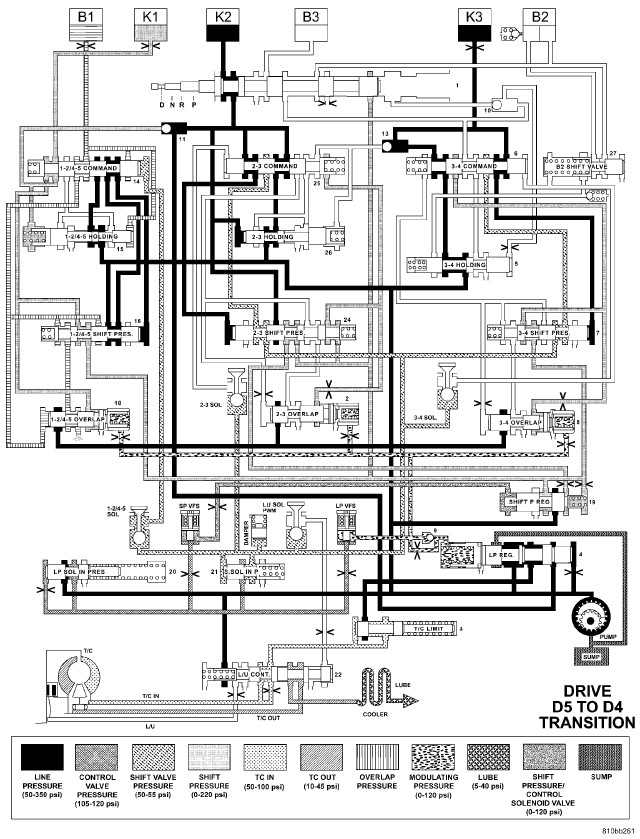

Fig 18: Hydraulic Flow In Drive - Fifth To Fourth Gear Transition

GC0081213

Courtesy of CHRYSLER GROUP, LLC

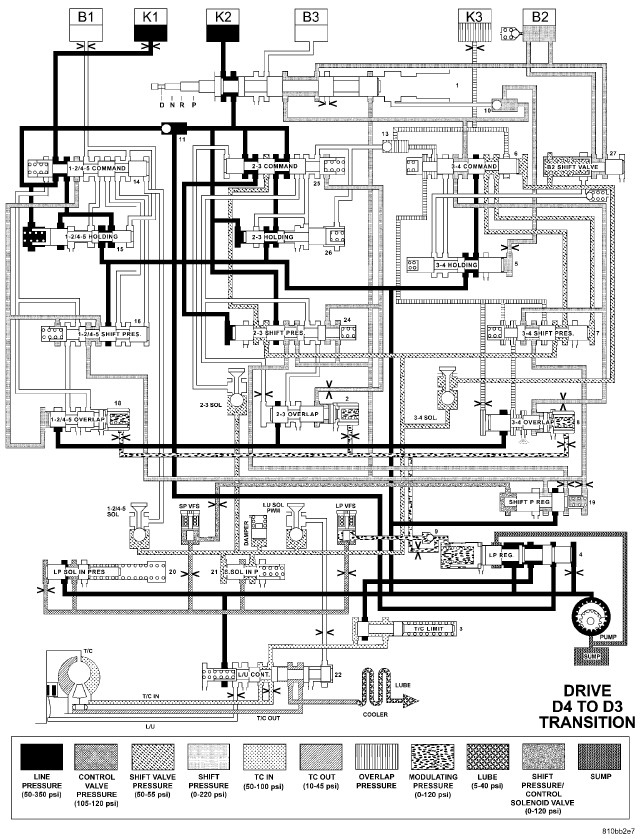

Fig 19: Hydraulic Flow In Drive - Fourth To Third Gear Transition

GC0081214

Courtesy of CHRYSLER GROUP, LLC

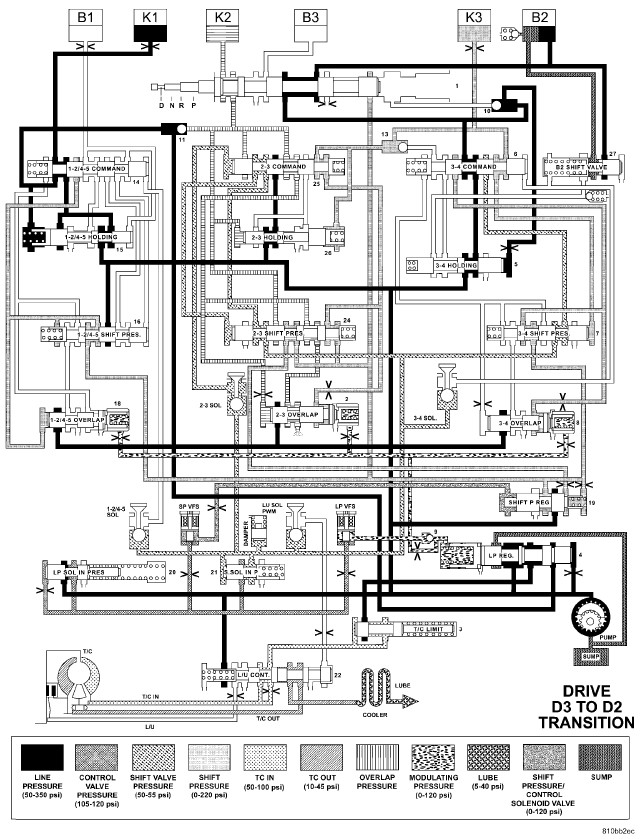

Fig 20: Hydraulic Flow In Drive - Third To Second Gear Transition

GC0081215

Courtesy of CHRYSLER GROUP, LLC

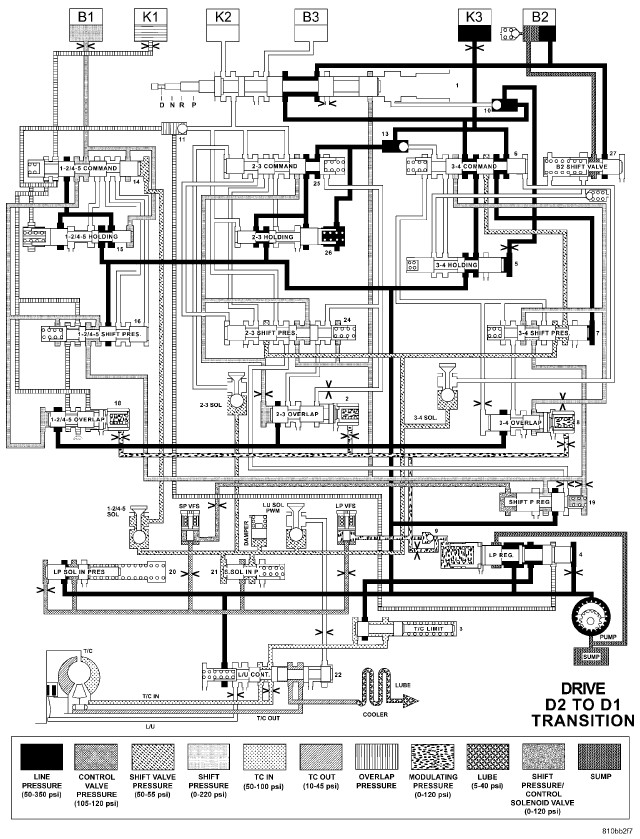

Fig 21: Hydraulic Flow In Drive - Second To First Gear Transition

GC0081216

Courtesy of CHRYSLER GROUP, LLC
