Park/Neutral Contact

WARNING: This page is about a different variant/trim than selected.

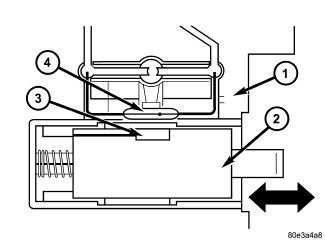

Fig 1: Cutaway View Of Park/Neutral Contact

Courtesy of CHRYSLER GROUP, LLC

1 - SHELL OF ELECTRIC CONTROL MODULE

2 - PLUNGER

3 - PERMANENT MAGNET

4 - DRY-REED CONTACT

In selector lever positions "P" and "N" the park/neutral contact (4) is actuated by a cam track which is located on the detent plate. The permanent magnet (3) is moved away from the dry-reed contact (4). The dry-reed contact (4) is opened. The TCM receives an electric signal. The circuit to the starter in the selector lever positions "P" and "N" is closed. See Fig 1.
