Pump, Water: Removal: 2.8L

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the radiator fan. Refer to FAN, COOLING, REMOVAL .
  3. Drain the cooling system. Refer to STANDARD PROCEDURE .

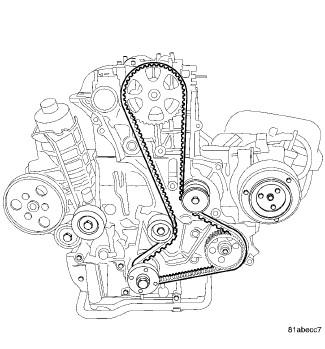

    Fig 1: Timing Belt
    GC0082180Courtesy of CHRYSLER GROUP, LLC
  4. Remove the timing belt.

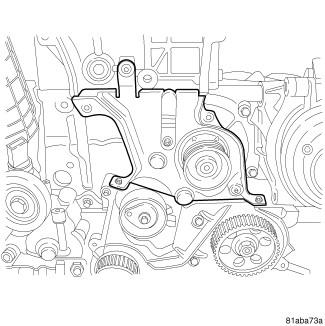

    Fig 2: Inner Front Cover
    GC0085597Courtesy of CHRYSLER GROUP, LLC
  5. Remove the inner timing cover.

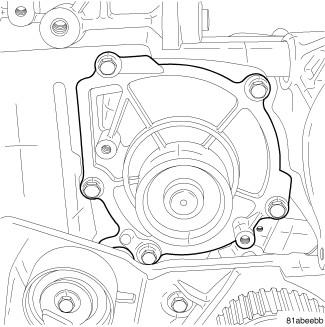

    Fig 3: Identifying Water Pump
    GC0085594Courtesy of CHRYSLER GROUP, LLC
  6. Remove bolts and the pump assembly.
