TENSIONER, Belt: Installation: 2.8L

WARNING: This page is about a different variant/trim than selected.

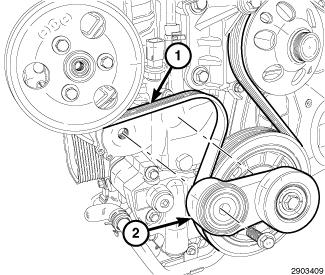

Fig 1: Accessory Drive Belt & Drive Belt Tensioner
GC0145396Courtesy of CHRYSLER GROUP, LLC
  1. Install serpentine belt tensioner (2). Tighten bolt (1) to 45 N.m (33 ft. lbs.).
  2. Install the accessory drive belt (1). Refer to BELT, SERPENTINE, INSTALLATION .
  3. Connect the negative battery cable.
